Gaming monitor 43″ C-Curved Display optional with Addressable LEDs and Multitouch PCT

Gaming-Specific Monitor Featuring a 43″ C-Curved Screen, with Optional Addressable LEDs and Multitouch PCT Functionality

Experience seamless interaction with TSD’s 43'' C-Curved Monitor—a refined, budget-friendly touch solution built for easy OEM and system integration. Its elegant C-curve wraps you in a wide, immersive viewing experience, making it perfect for keeping users engaged in any interactive application. Made by TSD’s experienced team, it also comes with full local support and quick delivery, so you get advanced tech without sacrificing reliability.

    Contact us
    product details

    Gaming 43.0''C- Monitor Specification

    When it comes to affordable touch solutions for OEM and system integration, TSD touch monitors are the top choice—they’re widely used in retail, self-service, gaming, and entertainment scenarios, including the 43.0'' C-curved gaming monitor lineup.

    TSD Technology, established in 2006, is a leading touch solution provider in Kunshan, China. We offer a comprehensive product lineup: PCAP and SAW touch screens, open-frame touch monitors, desktop touch monitors, and all-in-one touch computers. Our core focus is on creating products that are reliable, long-lasting, and cost-competitive.

    As a trusted Chinese touchscreen provider, we have seasoned electronic engineers and industry experts dedicated to leading the touch screen industry into a new information technology era. We also hold key certifications like ISO9001, CE, FCC, and RoHS—proving our strict adherence to global quality standards.

    15

    Record Of Revisions

    Version and Date

    Page

    Old Description

    New Description

    Remark

    A0 2025/06/17

    ALL

    First Edition For Customer

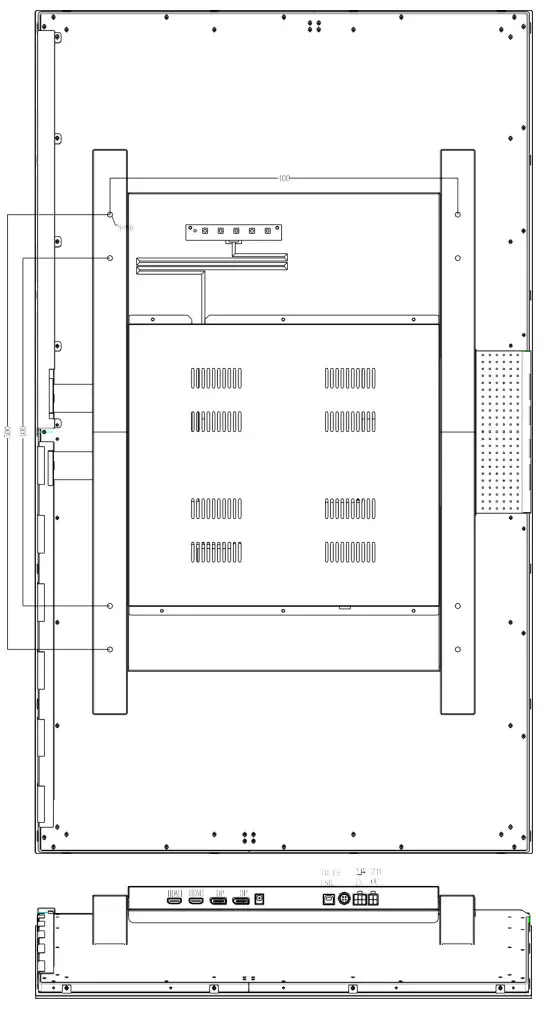

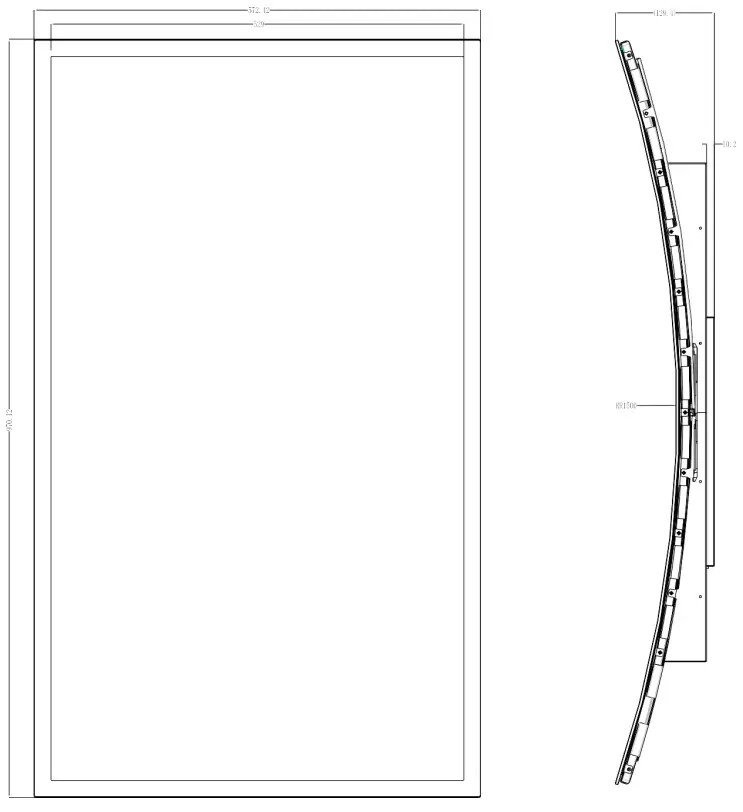

    Product Drawing

    43C-143C-2

    Technical Parameters

    Display specification

    Module size

    1066.54(H) x 591.43(V) mm

    Display area

    941.18mm(W) x 529.42mm(H)

    Number of pixels

    3840 x 2160

    Color gamut

    100%sRGB

    Colors

    1.07B

    Luminance

    ＞500 cd/m2

    Contrast ratio(typical)

    4000:1

    Response time(typical)

    10 ms

    Viewing angle(typical)

    R/L:89/89 (typ) U/D:89/89 (typ)

    Touch Specifications

    Touch

    Optional

    Bonding Mode

    Air Bonging

    Interface signals

    HDMI/DP

    Surface treatment

    AG、AR、AF Optional

    Other Specifications

    Power supply

    DC: 24V

    Life time

    50,000 hours

    Power consumption

    100W+30W (typ.)

    Dimensions

    970.12mm*572.42mm*130.12mm

    Weight

    26.0kg

    Temperature

    Operating: 0o C ~ 50o C

    Storage: -20o C ~ 60o C

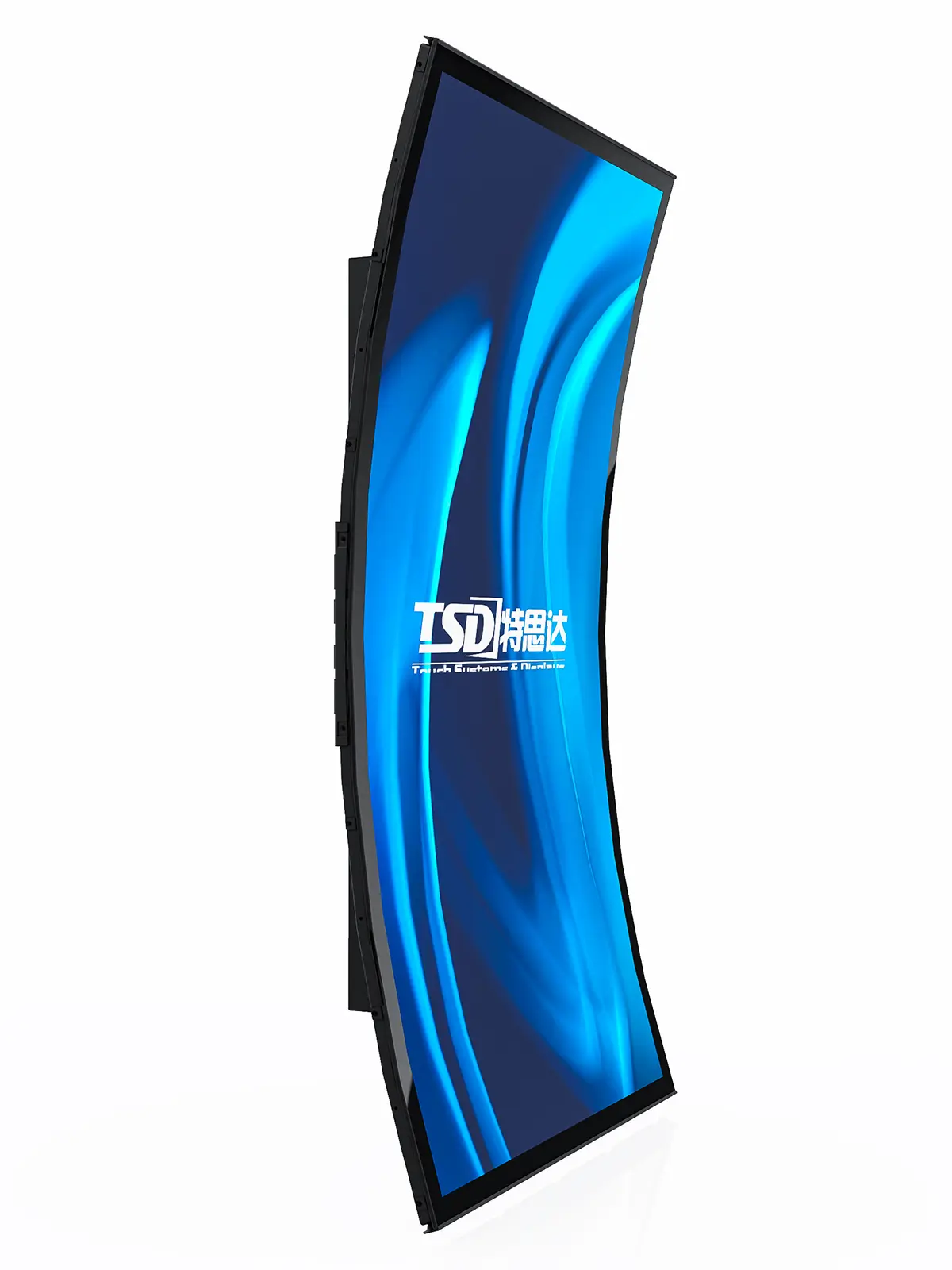

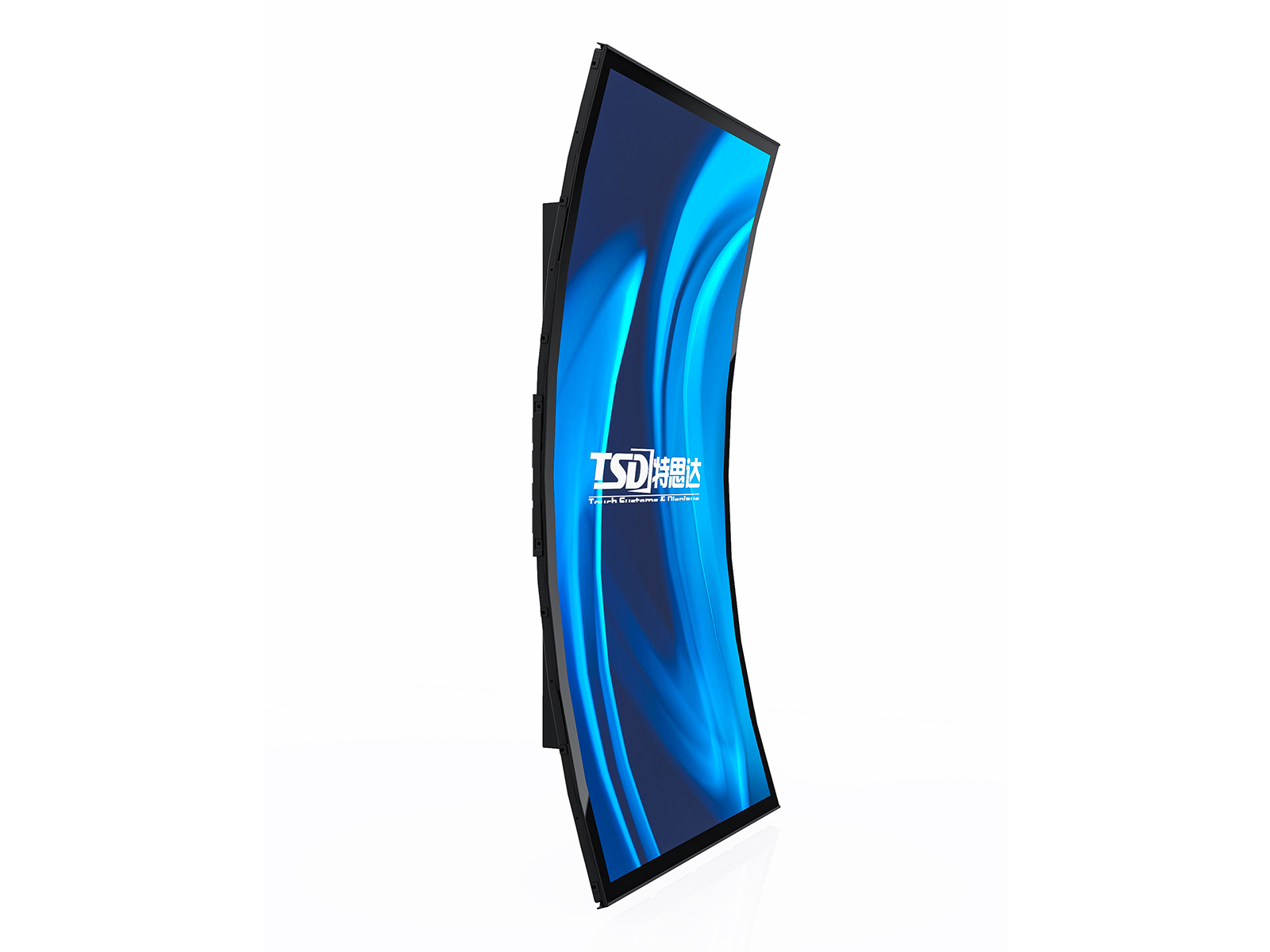

    430C-2

    Key Features

    01

    Immersive Curved Design: Boasts a sleek C-curve that opens up a wide, engaging viewing area—perfect for pulling users right into whatever’s on the screen.

    Crystal-Clear Visuals: Packed with a 43-inch 4K UHD (3840 x 2160) industrial TFT LCD panel. It serves up incredible detail, covers 100% sRGB colors, shines bright (>500 cd/m²), and has a sharp 4000:1 contrast ratio.

    Smooth Interactive Tech: You can opt for responsive Projected Capacitive (PCT/PCAP) multitouch—so every tap and swipe feels smooth and precise.

    Dynamic Lighting Effects: Add optional addressable LED light bars (on the front and sides) for extra flair. Control them with an optional Arduino board or external driver to create custom visuals or alerts.

    Versatile Connections: Comes with multiple input options like HDMI and DisplayPort, so it works with almost any system you have.

    Easy-to-Use Controls: Adjust settings in a snap with the intuitive On-Screen Display (OSD) interface—no complicated steps needed.

    Tough and Reliable: Built with a high-quality industrial panel to last, plus it has ISO9001, CE, FCC, and RoHS certifications for peace of mind. Runs on 24V DC power.

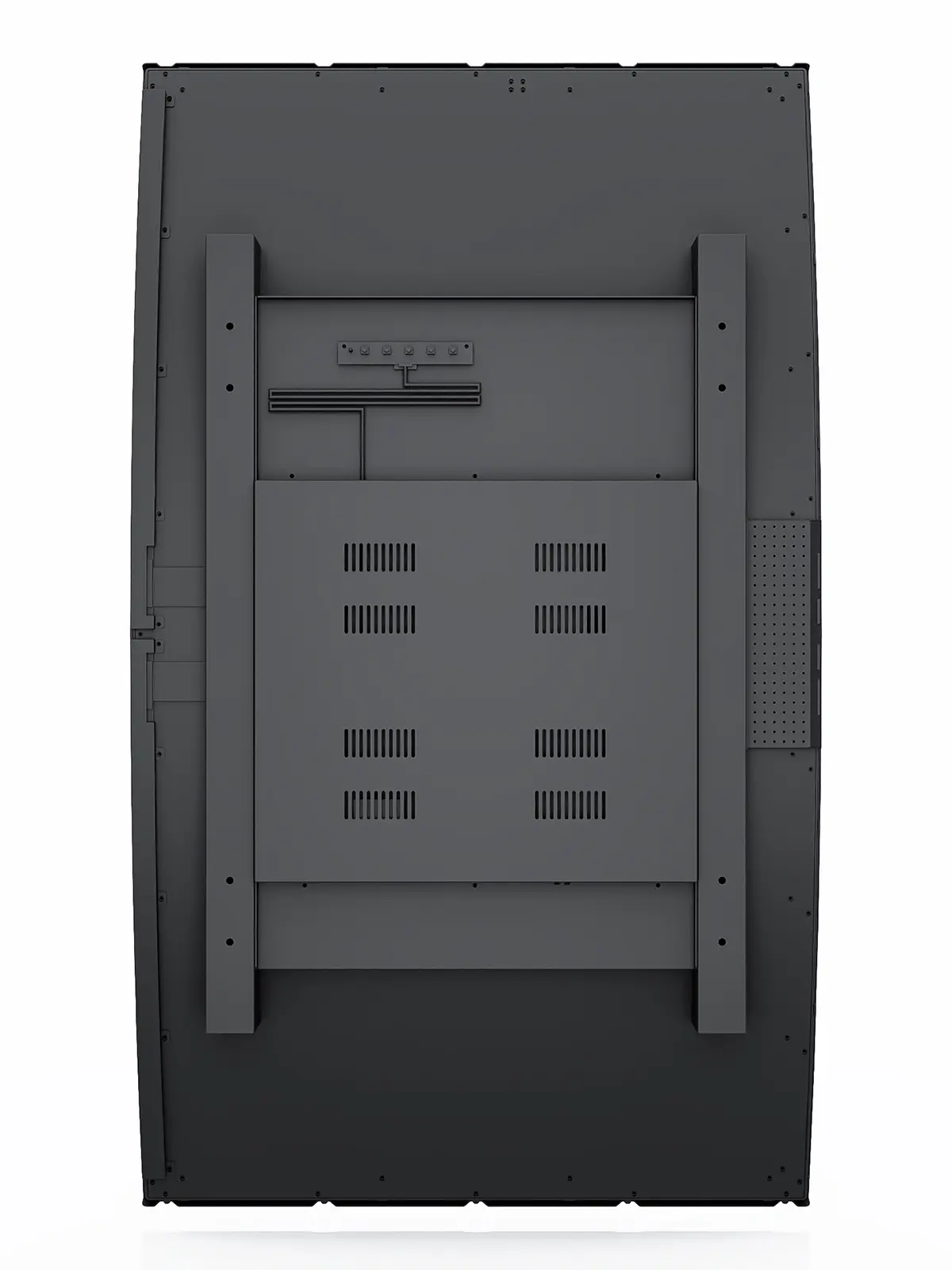

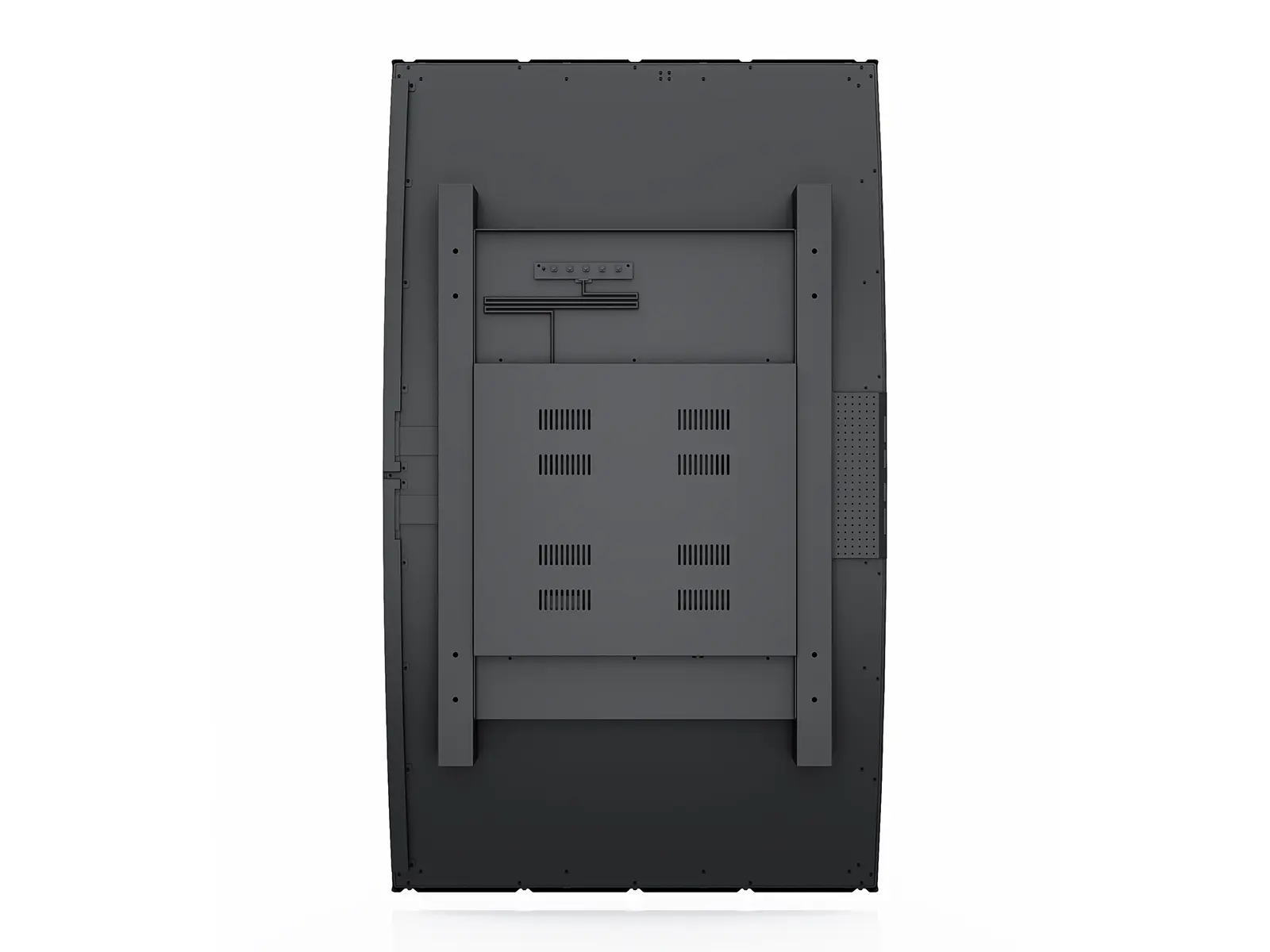

    Model: 430C-3

    430C-3

    Application Scenarios

    01

    1. Immersive Casino Gaming Machines: Step into a more engaging casino experience with this 43" C-curved monitor—ideal for modern slot machines and electronic gaming terminals. The soft curve of the screen wraps around players, pulling them deeper into the game and keeping their focus locked on the action. With 4K resolution, every graphic, animation, and jackpot alert pops with crystal-clear detail and bold colors, ramping up the excitement. Tap, swipe, and navigate bonus games or menus effortlessly thanks to the responsive PCT touch layer. And when players win? The built-in LED lights flash and pulse to celebrate—turning wins into showstoppers that catch other players’ eyes, luring them in and making the casino floor feel more lively.
