Gaming monitor 43″ 4K J Curved Non-LED
Gaming 43.0''J- Monitor Specification
TSD touch monitor are the most economic touch solutions which designed and developed for OEM and system intergration and widely used in retail, self- service, gaming and entertainment applications.
Established in 2006, TSD technology is a leading touch solution provider in kun- shan, China. Products include PCAP and SAW touch screen,open frame touch monitor, desktop touch monitor and All-in-one touch computer.We concentrate on desig- ning and manufacturing reliable, durable and cost competitive products.
As an outstanding china touchscreen rovider, we have experienced electronic engineers and echnical experts of the industry who are etermined to lead the touch screen industry into a new era of information technology. We have been granted ISO9001, CE, FCC, Rohs etc. certifications.
Record Of Revisions
|
Version and Date |
Page |
Old Description |
New Description |
Remark |
|
A0 2025/06/16 |
ALL |
First Edition For Customer |
|

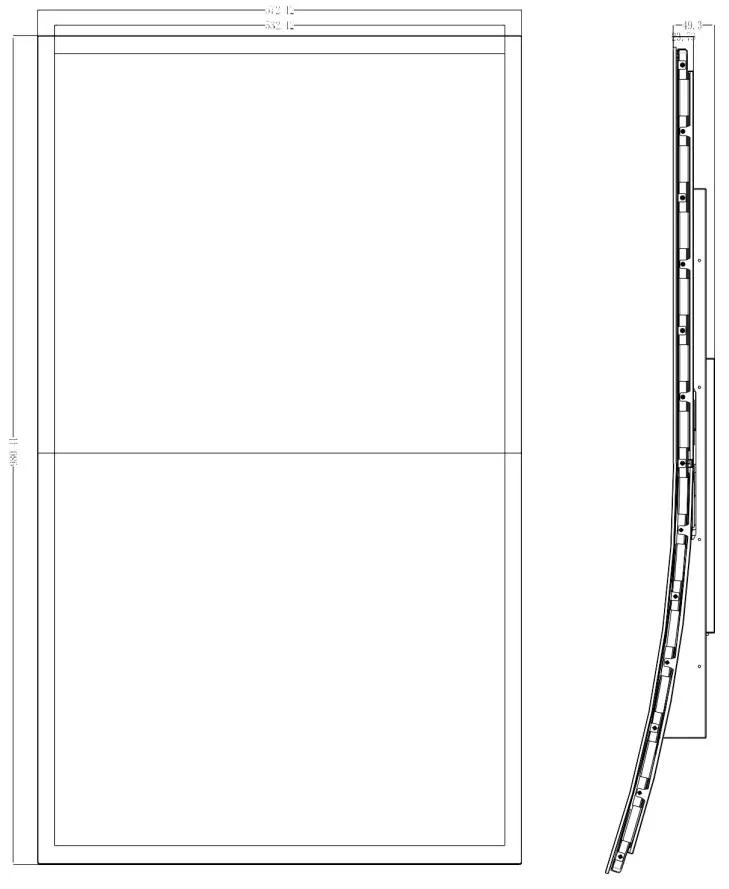

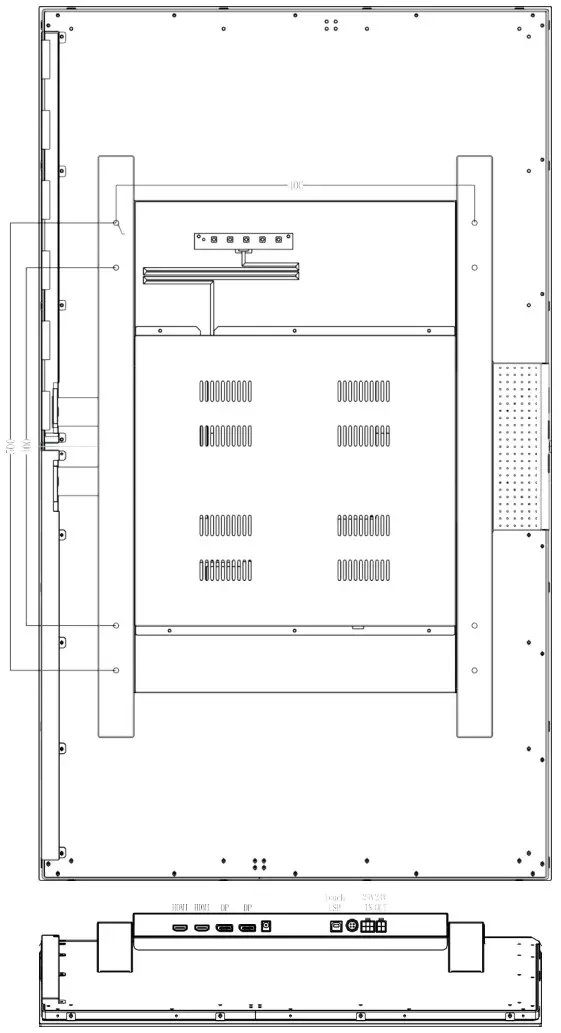

Product Drawing
Technical Parameters
|
Display specification |
|
|
Module size |
1007.75(H) x 591.43(V) mm |
|
Display area |
941.18mm(W) x 529.42mm(H) |
|
Number of pixels |
3840 x 2160 |
|
Color gamut |
100%sRGB |
|
Colors |
1.07B |
|
Luminance |
＞500 cd/m2 |
|
Contrast ratio(typical) |
4000:1 |
|
Response time(typical) |
10 ms |
|
Viewing angle(typical) |
R/L:89/89 (typ) U/D:89/89 (typ) |
|
Touch Specifications |
|
|
Touch |
Optional |
|
Bonding Mode |
Air Bonging |
|
Interface signals |
HDMI/DP |
|
Surface treatment |
AG、AR、AF Optional |
|
Other Specifications |
|
|
Power supply |
DC: 24V |
|
Life time |
50,000 hours |
|
Power consumption |
100W+30W (typ.) |
|
Dimensions |
572.42mm*980.41mm*49.30mm |
|
Weight |
26.0kg |
|
Temperature |
Operating: 0o C ~ 50o C |
|
Storage: -20o C ~ 60o C |
|
