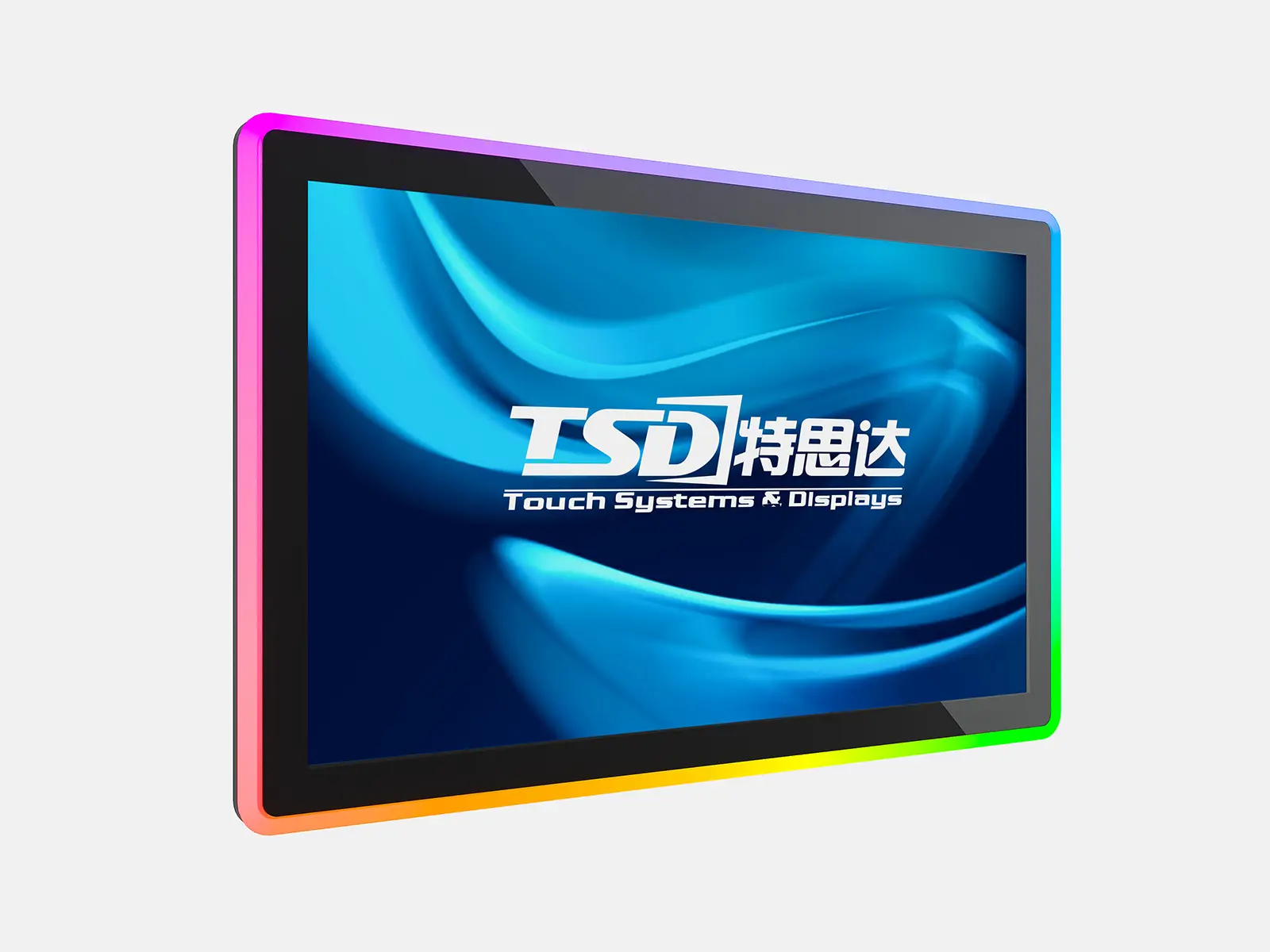

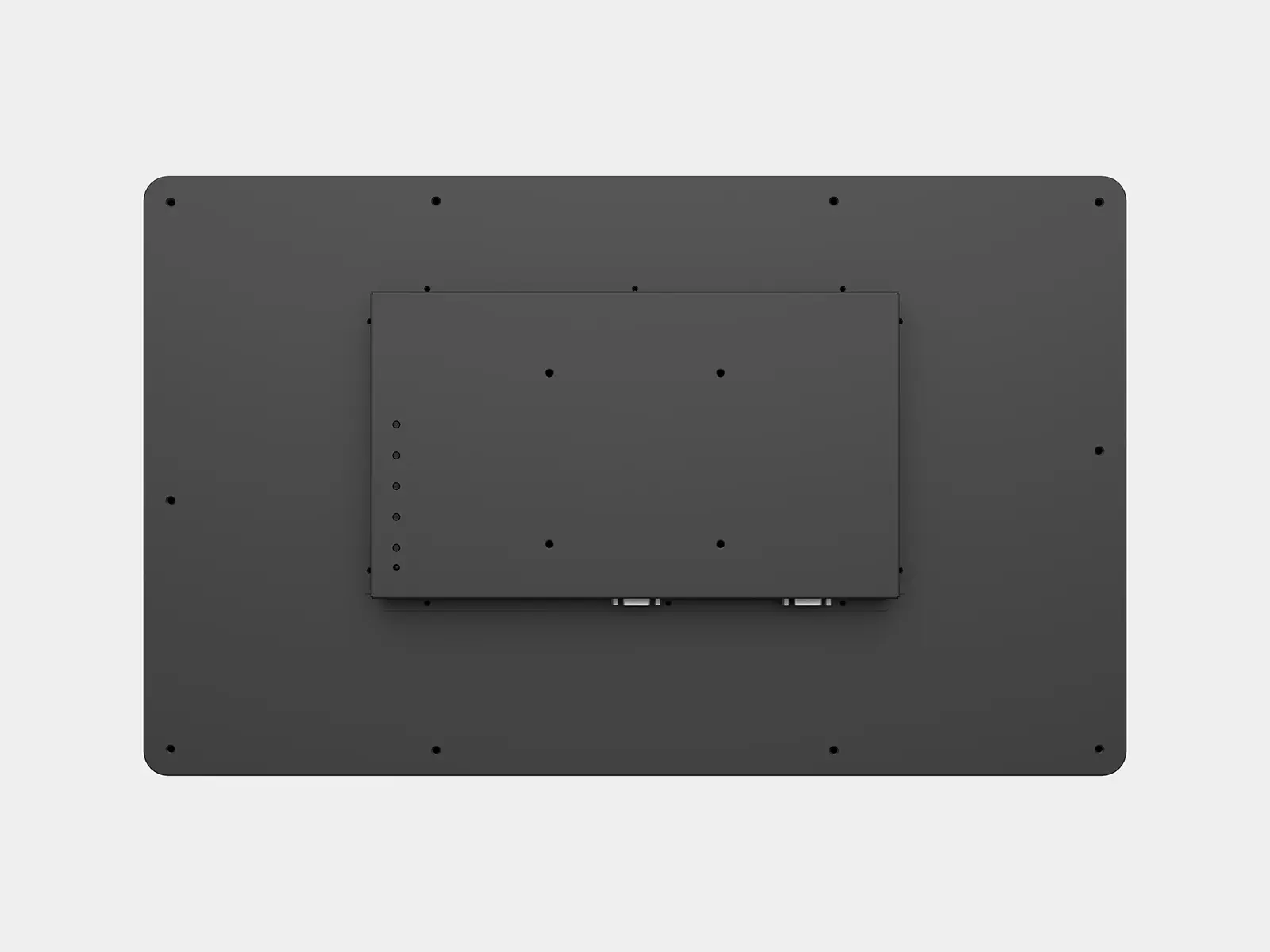

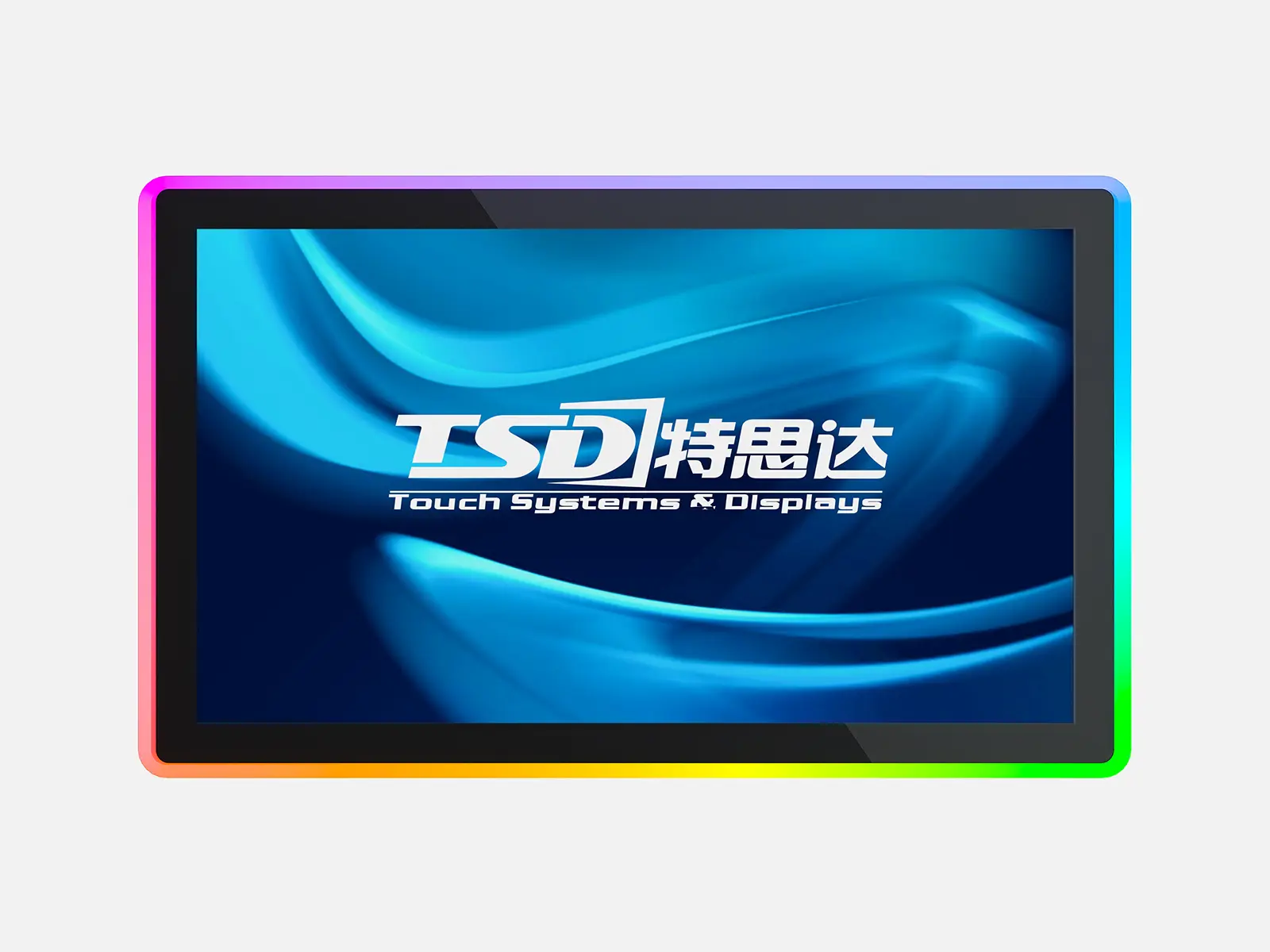

Gaming Display 23.8inch with LED lighting
Gaming 23.8'' Monitor Specification
When it comes to affordable, high-value touch solutions for OEM and system integration, TSD touch monitors are the top choice—they’re widely used in retail, self-service, gaming, and entertainment scenarios, including 23.8-inch gaming monitor applications.
TSD Technology, established in 2006, is a leading touch solution provider in Kunshan, China. We offer a comprehensive product lineup: PCAP and SAW touch screens, open-frame touch monitors, desktop touch monitors, and all-in-one touch computers. Our core focus is creating products that are reliable, long-lasting, and cost-competitive to meet customer needs.
As a trusted Chinese touchscreen provider, we have seasoned electronic engineers and industry experts dedicated to leading the touch screen industry into a new information technology era. We also hold key certifications like ISO9001, CE, FCC, and RoHS—proof of our unwavering commitment to quality.
Record Of Revisions
|
Version and Date |
Page |
Old Description |
New Description |
Remark |
|
A0 2025/06/06 |
ALL |
First Edition For Customer |
|

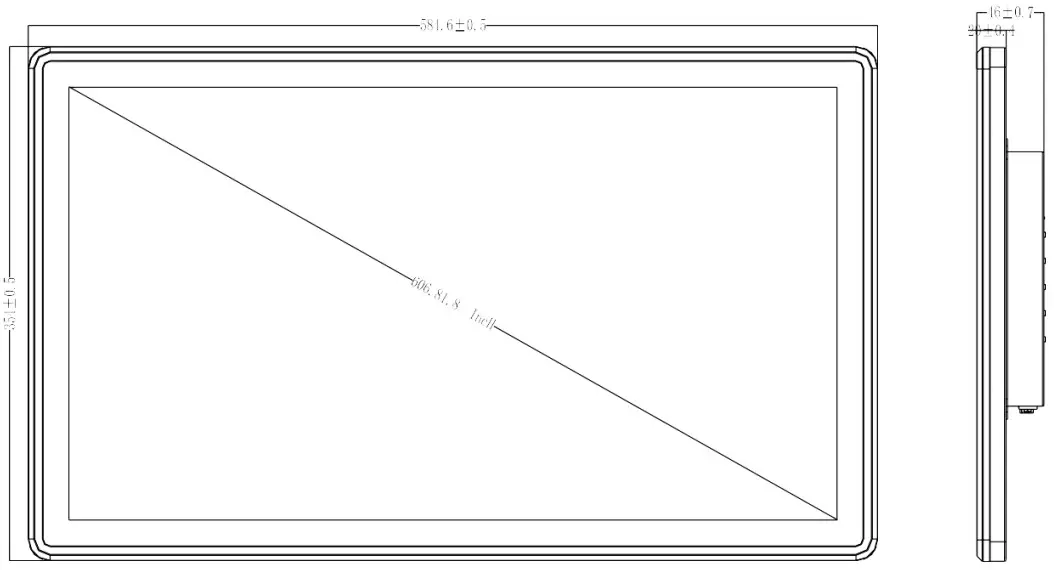

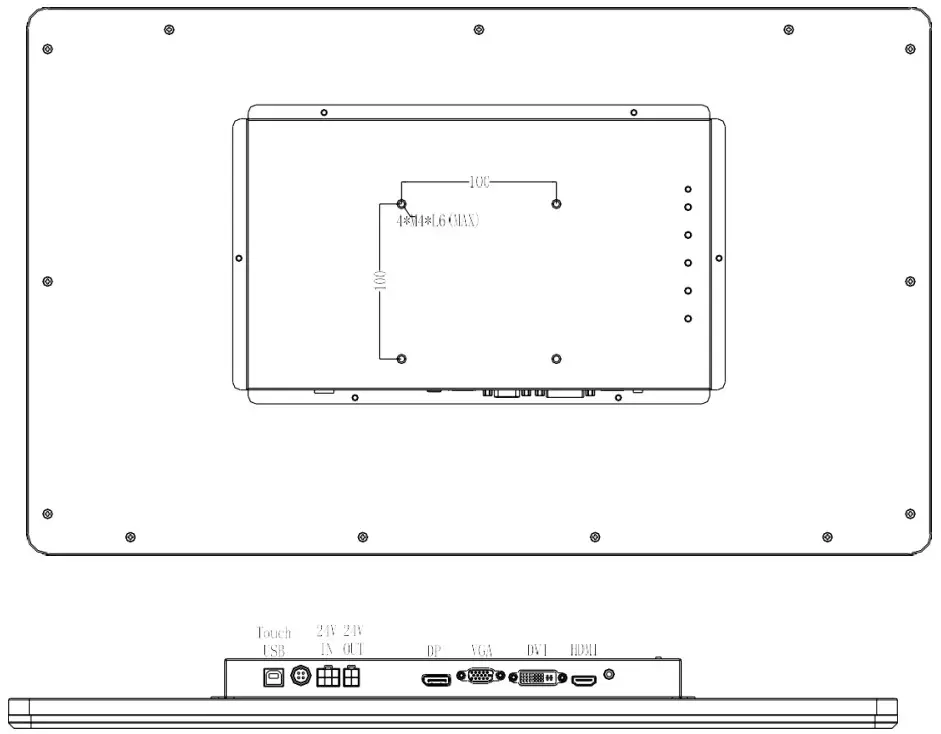

Product Drawing
Technical Parameters
|
Display specification |
|
|
Module size |
594.2(H) x 363(V) x 43(D) mm |
|
Display area |
527.04mm(W) x 296.46mm(H) |
|
Number of pixels |
2560 x 1440 |
|
Color gamut |
99%sRGB |
|
Colors |
16.7M |
|
Luminance |
500 cd/m2 |
|
Contrast ratio(typical) |
1000:1 |
|
Response time(typical) |
14 ms |
|
Viewing angle(typical) |
R/L:88/88 (typ) U/D:88/88 (typ) |
|
Touch Specifications |
|
|
Touch |
Optional |
|
Bonding Mode |
Air Bonging |
|
Interface signals |
HDMI、DP |
|
Surface treatment |
AG、AR、AF Optional |
|
Other Specifications |
|
|
Power supply |
DC: 12V/24V |
|
Life time |
>30,000 hours |
|
Power consumption |
32W+10W (typ.) |
|
Dimensions |
584.60mm*354.00mm*46.00mm |
|
Weight |
10.0kg |
|
Temperature |
Operating: 0o C ~ 50o C Storage: -20o C ~ 60o C |
