49 Inch 4K UHD Touch Screen Displays with Aluminum frame

Introduce our 49-inch 4K UHD Touch Screen Display, a spectacular solution for large-scale interactive applications. Its stunning 4K UHD resolution delivers incredibly sharp and vibrant visuals, perfect for captivating your audience. The responsive multi-touch technology provides an intuitive and seamless user experience. With versatile connectivity options, including HDMI and an optional DisplayPort, it integrates easily into any setup. The built-in OPS slot allows for the seamless addition of a computing module, transforming it into a powerful all-in-one touch computer.

product details

49" Interactive Digital Signage

TSD IDS All-In-One touch computer is for OEM and system integrators, designed with the best cost-effective touch solutions, making TSD touch display products more competitive for retailing, self-service gaming and entertainment applications.

Established in 2006, TSD technology is a leading touch solution provid -er in Kunshan, China. Products including PCAP and SAW touch screen, open frame touch monitor, desktop touch monitor and All-in-one touch computer. We concentrate on designing and manufacturing reliable, durable and cost competitive products. As anoutstanding touchscreen provider, we have experienced electronic engineers and technical experts of the industry who are determined to lead the touch screen industry into a new era of information technology.

We have been granted ISO9001, CE, FCC, Rohs Certifications etc.

Key structure
Support multi touch function A finger or touch pen
USB touch interface, plug and play Toughened glass capacitive screen 16:9 display screen
Free optional accessories

Application
Finance
Gaming
Transportation
Advertisement
Trade
Post and telecommunications
Tax revenue
Insurance

Version: A0

Date: 2021.05.20

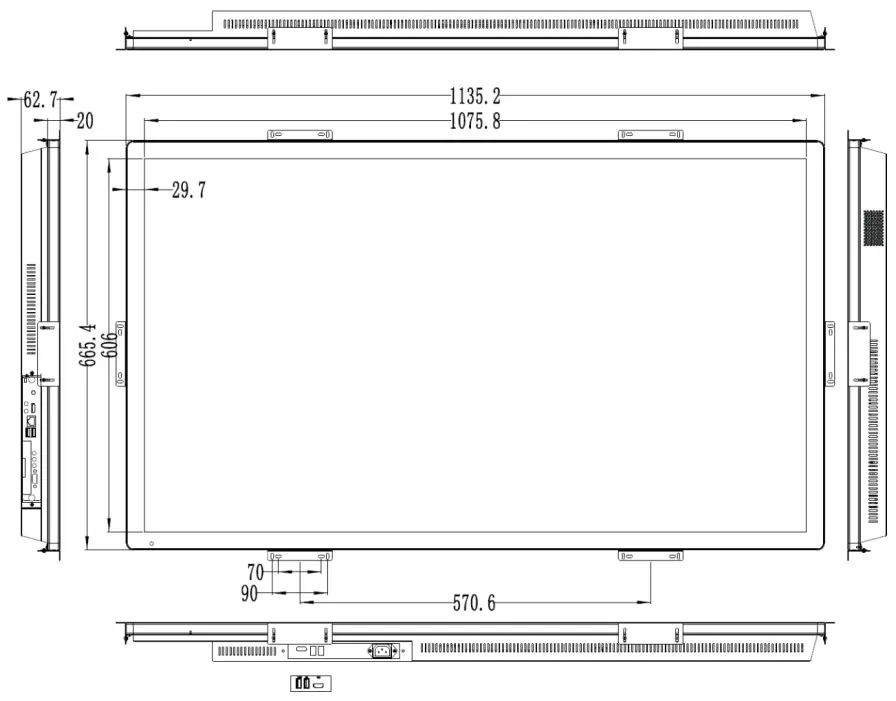

Product Drawing

Technical Parameters

Display specification
Model	CBC490
Display size	16：9
Active area	1073.78 (H)mm x 604.00 (V) mm
Native resolution	3840x2160@60Hz
Pixel pitch	0.27963(H)(mm) x 0.27963(V)(mm)
Colors	10bits
Brightness(typical)	Displayl: 500 nits
Contrast ratio(typical)	1000:1
Response time(typical)	8 ms
Viewing angle(typical)	R/L:89/89 (typ) U/D:89/89 (typ)
Touch Specifications
Touch screen	49" PCAP
Touch point	10 points
Touch accuracy	2mm
Minimum touch body	Ø7mm
Touch activation force	10g
Touch response time	10ms (typ)
IC	ILI2322
Material	3 mm strengthen glass
Surface durability	7H AF
Light transmission	86%
Touch resolution	4096*4096
Input method	Finger、Touch pen
Expected life performance	50,000,000 times

Other Specifications
Power supply	AC:220V
Rear Panel I/O	USB2.01；TOUCH USB1；HDMI IN*1
Speaker	3W *2
MTBF	50,000h
Dimensions	Product: 1135.2mm665.4mm62.7mm
	Package: 1235mm765mm162mm
Weight	Product: TBD kg
	Package: TBD kg
Temperature	Operating: 0o C ~ 40oC
	Storage: -20o C ~ 60oC
Humidity	Operating: 20%~80%
	Storage: 10%~90%
Accessories(standard)	Power Cables	Connector	British Specification Plug
		Length	1.8 m ± 30mm
		Color	Black
	Signal Cables	Connector	USBA-USBB
		Length	1.5 m ± 30mm
		Color	Black

Note: Panel and specifications subject to change without notice.

A 49-inch 4K UHD touch screen display with an OPS (Open Pluggable Specification) computer is a powerful and versatile solution that offers significant advantages across a range of markets. Its combination of a large, high-resolution display and integrated computing power makes it a prime choice for dynamic, interactive applications.

Retail: The 49-inch display is perfect for creating an "endless aisle" experience, allowing customers to browse and order products not in stock. It can also be used for interactive digital signage, displaying promotional videos, product specifications, and virtual try-on applications. The high resolution ensures that every detail, from fabric texture to product color, is crisp and clear.

Corporate: In corporate settings, this solution is ideal for collaborative spaces, boardrooms, and lobbies. It can serve as an interactive whiteboard for brainstorming sessions, a dynamic presentation screen with stunning clarity, and a communication hub for displaying company news, key performance indicators (KPIs), or welcome messages.

Education: The large touch screen makes learning more interactive and engaging for students. It can be used as a digital blackboard, a canvas for collaborative projects, or a tool for presenting educational content in a vivid, high-resolution format.

Hospitality and Public Spaces: The display's size and touch capabilities make it a perfect fit for wayfinding kiosks in airports, museums, and shopping malls. It can also be used for self-service check-in at hotels or as an information hub in lobbies, providing guests with details about services, events, and local attractions.

Industrial: In industrial environments, the 4K touch display can serve as a robust and reliable human-machine interface (HMI) for monitoring and controlling operations. It can display real-time data, safety protocols, and complex diagrams with exceptional clarity, ensuring a more intuitive and efficient workflow for operators.
