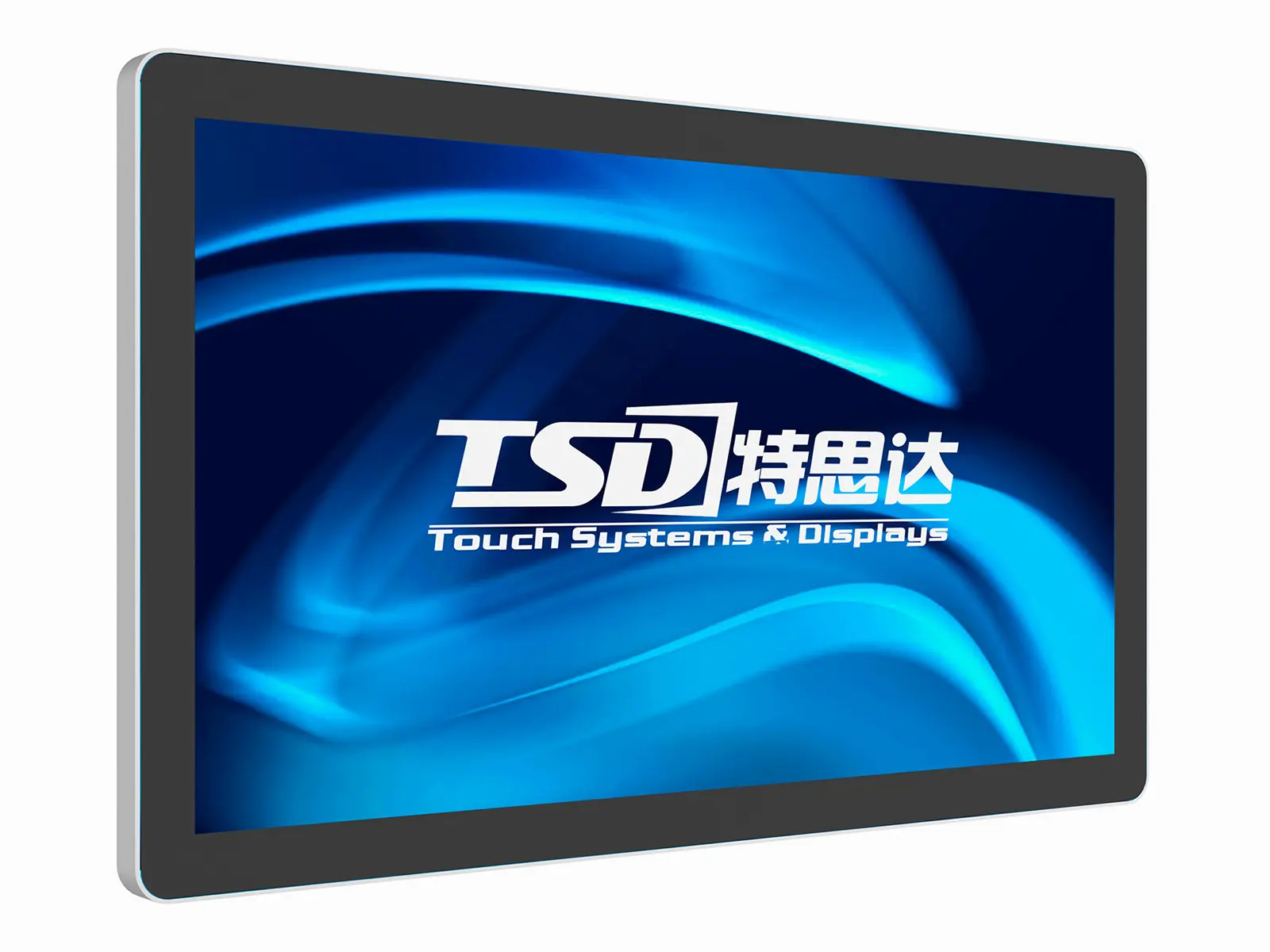

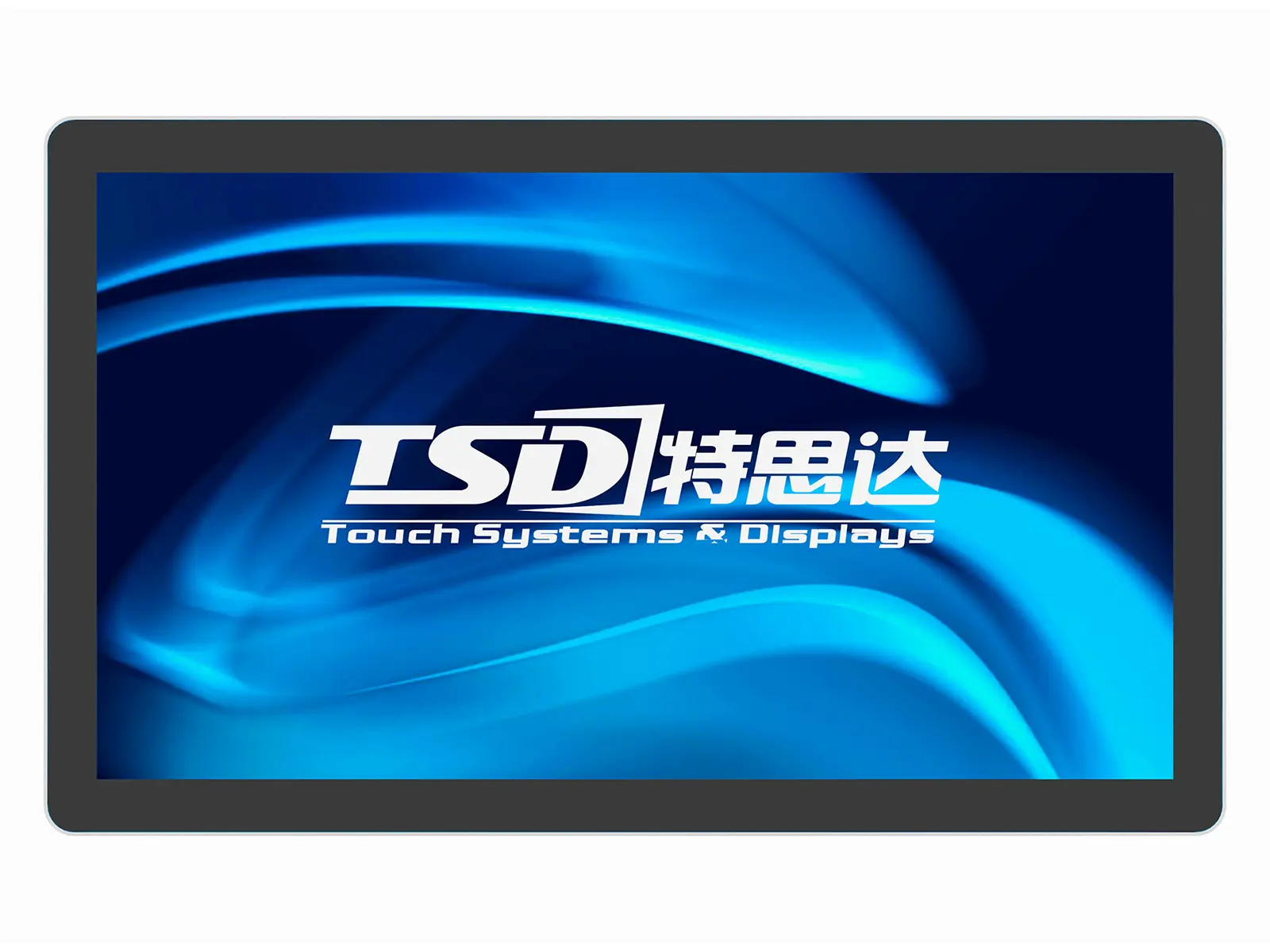

23.8-inch Full HD Touch Screen Monitor
23.8'' Monitor Model：ITL238
When it comes to affordable, high-value touch solutions for OEM and system integration, TSD touch monitors are the top choice—and the 23.8-inch ITL238 monitor is no exception. It’s widely used in retail, self-service, gaming, and entertainment scenarios, fitting right into diverse business setups.
TSD Technology, established in 2006, is a leading touch solution provider in Kunshan, China. We offer a comprehensive product lineup: PCAP and SAW touch screens, open-frame touch monitors, desktop touch monitors, and all-in-one touch computers. Our core focus is creating products that are reliable, long-lasting, and cost-competitive to meet customer needs.
As a trusted Chinese touchscreen provider, we have seasoned electronic engineers and industry experts dedicated to leading the touch screen industry into a new information technology era. We also hold key certifications like ISO9001, CE, FCC, and RoHS—proof of our unwavering commitment to quality, which the ITL238 monitor fully reflects.
Record Of Revisions
|
Version and Date |
Page |
Old Description |
New Description | Remark |
|
A0 2025/06/05 |
ALL |
First Edition For Customer |

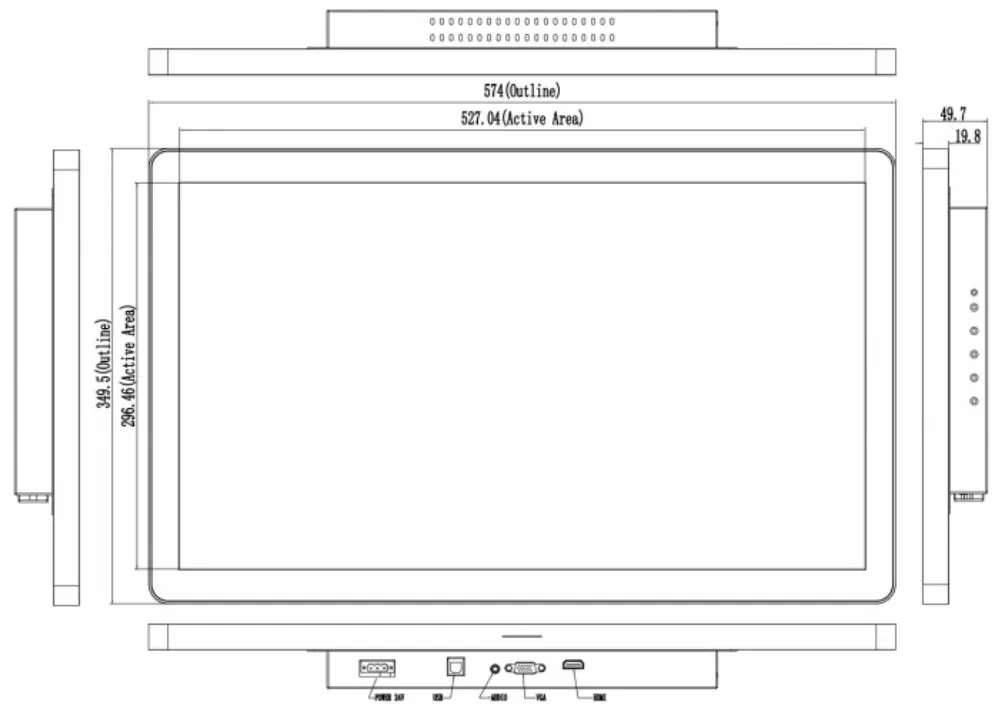

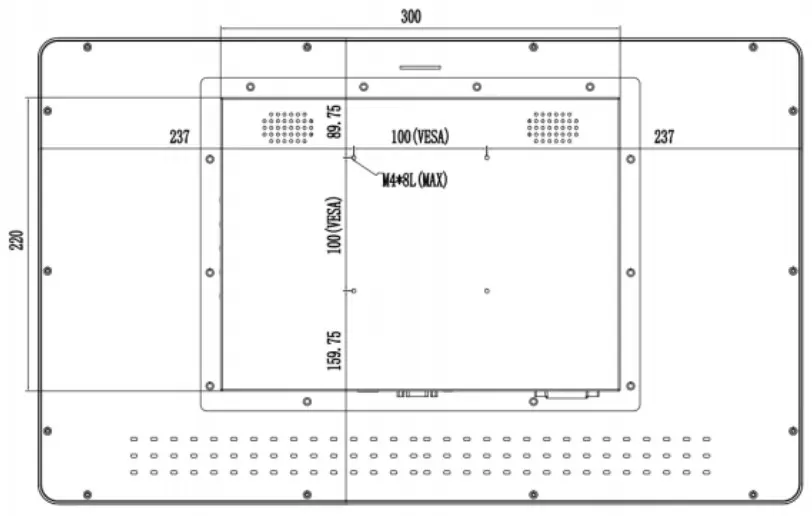

Product Drawing
Technical Parameters
|
Display specification |
|
|
Model |
LCD |
|
Display size |
16：9 |
|
Active area |
527.04 (H)mm x 296.46 (V) mm |
|
Native resolution |
1920 x 1080 @60Hz |
|
Pixel pitch |
0.2745(mm) x 0.2745(mm) |
|
Display colors |
16.7M |
|
Brightness(typical) |
LED panel: 320 nits(Min) 400 nits(Typ) |
|
Contrast ratio(typical) |
1000:1 |
|
Response Time |
14ms |
|
Viewing angle(typical) |
R/L:89/89° (typ) U/D:89/89° (typ) |
|
Touch Specifications |
|
|
Touch screen |
23.8 " PCAP |
|
Touch point |
10 points |
|
Touch accuracy |
2mm |
|
Minimum touch body |
Ø7mm |
|
Touch activation force |
10g |
|
Touch response time |
10ms (typ) |
|
IC |
ILI2510 |
|
Material |
3 mm strengthen glass |
|
Surface durability |
Mohs' 7H |
|
Light transmission |
86% |
|
Touch resolution |
4096*4096 |
|
Input method |
Finger、Touch pen |
|
Expected life performance |
50,000,000 times |
|
Other Specifications |
|
|
Power supply |
DC:12V |
|
Dimensions |
Product: 574.00mmx349.50 mmx49.70mm |
|
Package: 700.0mmx480.0mmx220.0mm |
|
|
Weight |
Product: 7.0kg |
|
Package: 8.0kg |
|
|
Temperature |
Operating: 0o C ~ 50o C |
|
Storage: -20o C ~ 60o C |
|
|
Humidity |
Operating: 10%~80% |
|
Storage: 10%~80% |
|
