18.5inch touch PC for industrial control
18.5'' Monitor Model：IDS185
TSD touch monitors stand out as the most cost-effective touch solutions. Specifically engineered and developed for OEM and system integration, they are widely adopted across retail, self-service, gaming, and entertainment applications—including integration with the 18.5-inch IDS185 monitor.
Founded in 2006, TSD Technology is a leading touch solution provider based in Kunshan, China. Its product range covers PCAP and SAW touch screens, open-frame touch monitors, desktop touch monitors, and all-in-one touch computers. The company focuses on designing and manufacturing products that prioritize reliability, durability, and cost competitiveness.
As an outstanding touchscreen supplier in China, TSD boasts a team of experienced electronic engineers and industry technical experts. These professionals are committed to driving the touch screen industry into a new era of information technology. Additionally, TSD has been awarded certifications such as ISO9001, CE, FCC, and RoHS, ensuring compliance with global quality standards.
Record Of Revisions
|
Version and Date |
Page |
Old Description |
New Description | Remark |
|
A0 2024/04/18 |
ALL |
First Edition For Customer |

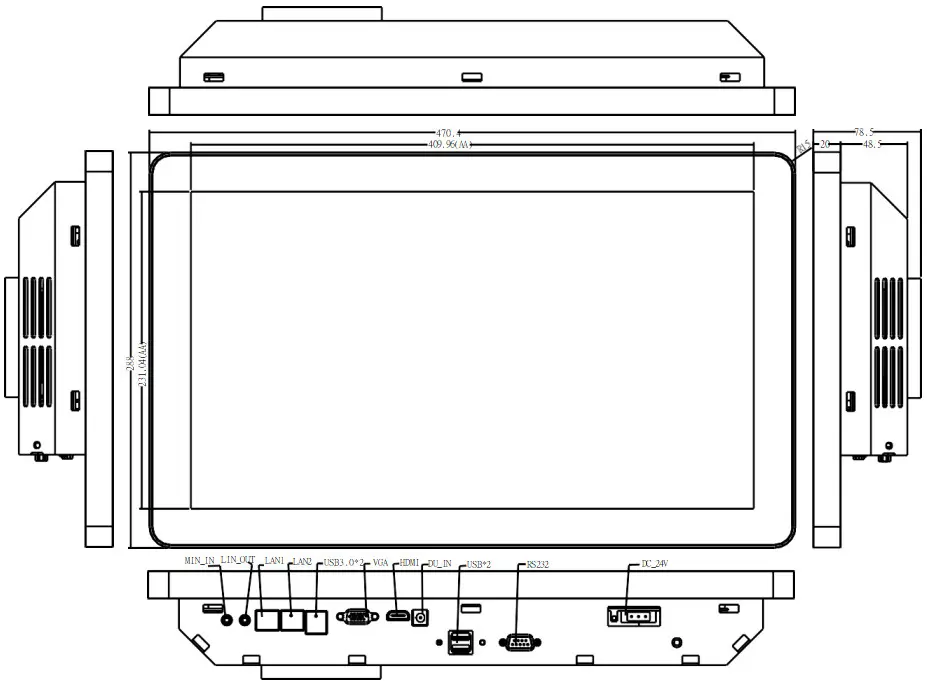

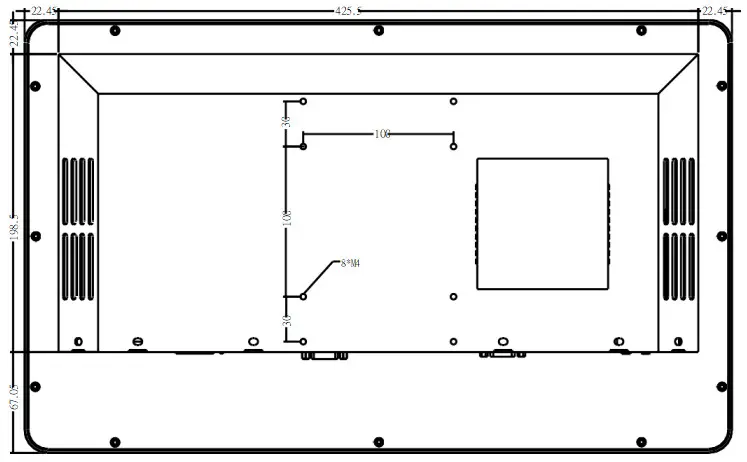

Product Drawing
Technical Parameters
|
Display specification |
|
|
Model |
LCD |
|
Display size |
16：9 |
|
Active area |
408.96 (H)mm x 230.04 (V) mm |
|
Native resolution |
1920 x 1080 @60Hz |
|
Pixel pitch |
0.213(mm) x 0.213(mm) |
|
Display colors |
16.7M |
|
Brightness(typical) |
LED panel: 350 nits |
|
Contrast ratio(typical) |
1000:1 |
|
Response Time |
20ms |
|
Viewing angle(typical) |
R/L:89/89 (typ) U/D:89/89 (typ) |
|
Touch Specifications |
|
|
Touch screen |
CTP185GBCXX-M-27（18.5 " PCAP） |
|
Touch point |
10 points |
|
Touch accuracy |
2mm |
|
Minimum touch body |
Ø7mm |
|
Touch activation force |
10g |
|
Touch response time |
10ms (typ) |
|
IC |
ILI2510 |
|
Material |
3 mm strengthen glass |
|
Surface durability |
Mohs' 7H |
|
Light transmission |
86% |
|
Touch resolution |
4096*4096 |
|
Input method |
Finger、Touch pen |
|
Expected life performance |
50,000,000 times |
|
PC Specifications |
|
|
CPU |
I3-3217U |
|
GPU |
Intel Hm76 |
|
ROM |
DDR3-4G |
|
SSD |
SATA3.0-256G |
|
Display |
Supports LVDS, VGA,HDMI |
|
USB |
8*USB（USB3.0*2 USB2.0*6） |
|
COM |
2*COM COM2 support RS422/RS485 |
|
VGA |
VGA*1 |
|
HDMI |
HDMI*1 |
|
OS |
Support Windows7/Windows 8/Windows 10/Linux |
|
Internet |
MIN-IN，LIN-OUT，LAN1,LAN2,USB3.0*2,VGA,HDMI,DU-IN,USB*2,RS232,DC-24V |
|
Other Specifications |
|
|
Power supply |
DC:24V |
|
Dimensions |
Product: 470.4mm*288 mm*78.5mm |
|
Package: 565.0mmx385.0mmx165.0mm |
|
|
Weight |
Product: 7.0kg |
|
Package: 8.0kg |
|
|
Temperature |
Operating: 0o C ~ 50oC |
|
Storage: -20o C ~ 60oC |
|
|
Humidity |
Operating: 20%~80% |
|
Storage: 10%~90% |
|
