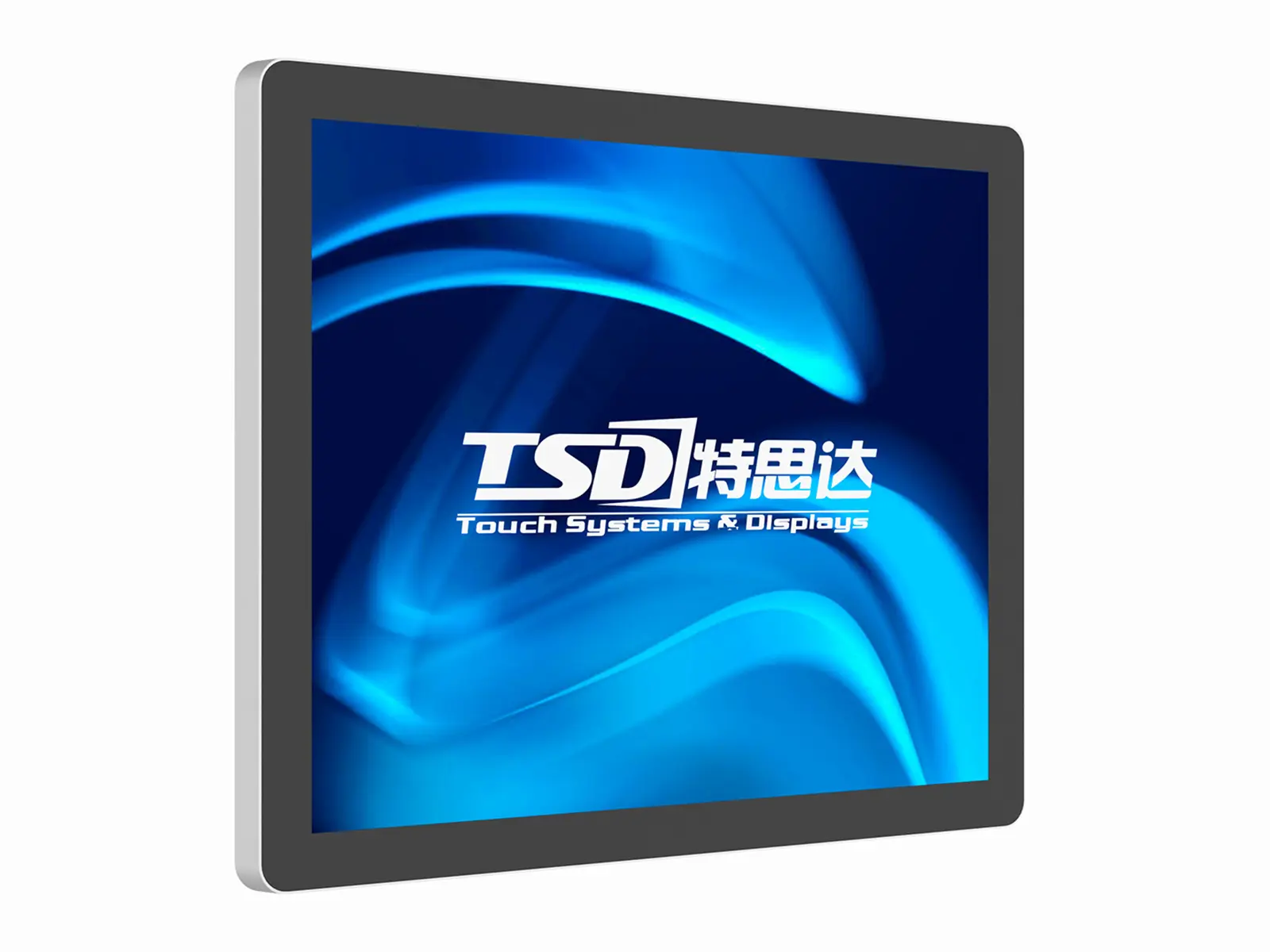

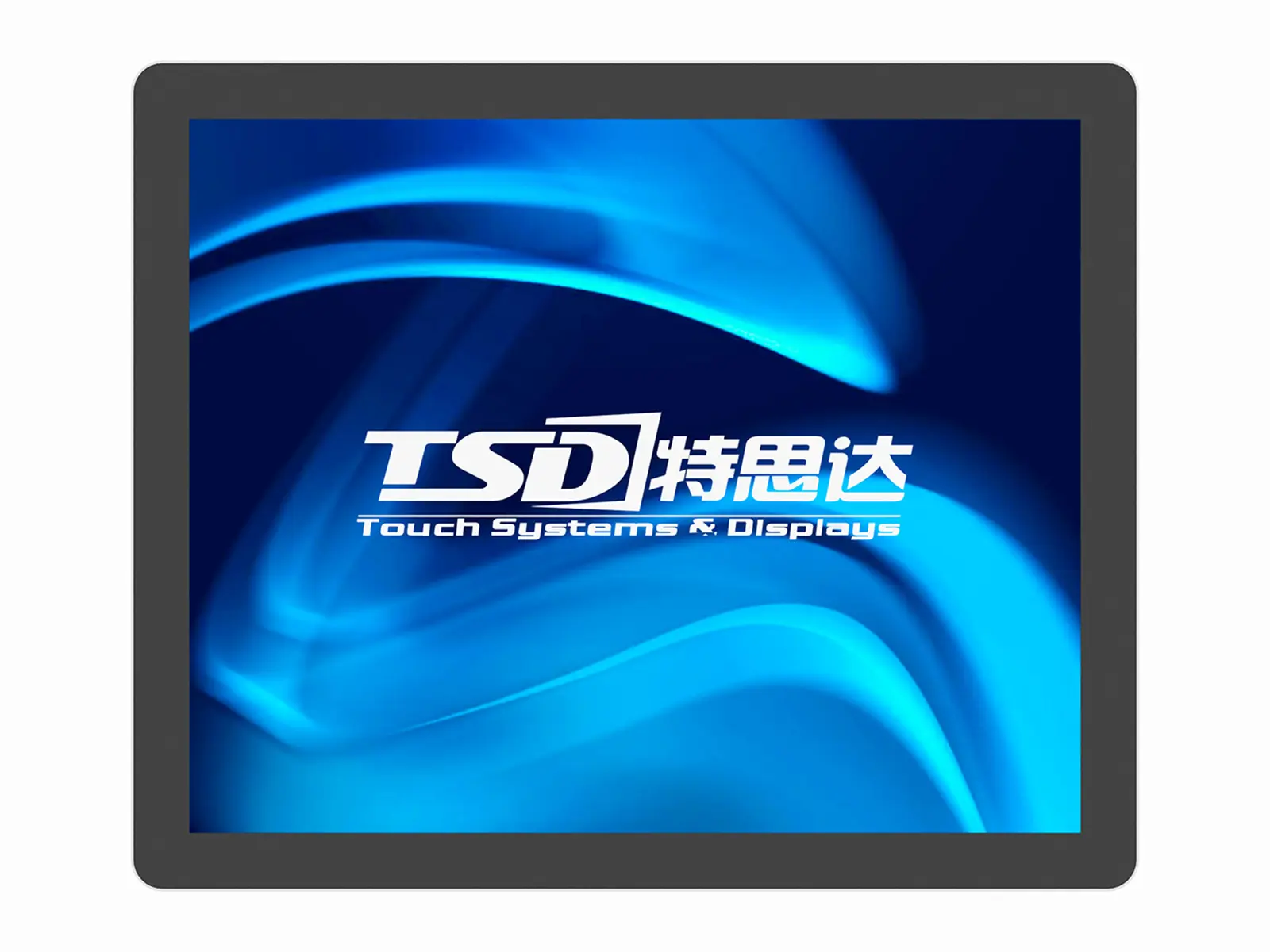

17-inch True Flat Touch Screen Monitor
17.0'' Monitor Model：ITL170
TSD touch monitor are the most economic touch solutions which designed and developed for OEM and system intergration and widely used in retail, self- service, gaming and entertainment applications.
Established in 2006, TSD technology is a leading touch solution provider in kun- shan, China. Products include PCAP and SAW touch screen, open frame touch monitor, desktop touch monitor and All-in-one touch computer. We concentrate on desig- ning and manufacturing reliable, durable and cost competitive products.
As an outstanding china touchscreen rovider, we have experienced electronic engineers and echnical experts of the industry who are etermined to lead the touch screen industry into a new era of information technology. We have been granted ISO9001, CE, FCC, Rohs etc. certifications.
Record Of Revisions
|
Version and Date |
Page |
Old Description |
New Description | Remark |
|
A0 2025/06/09 |
ALL |
First Edition For Customer |

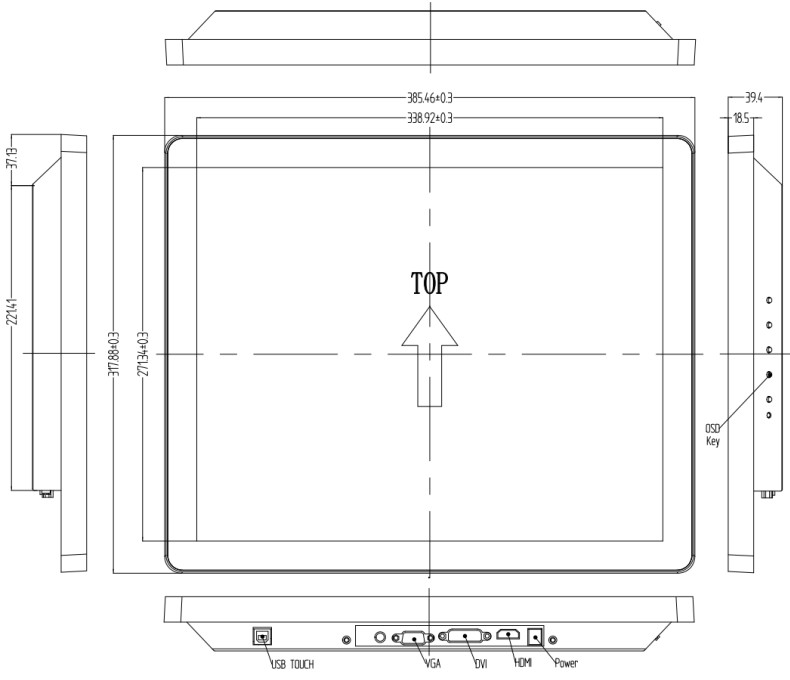

Product Drawing
Technical Parameters
|
Display specification |
|
|
Model |
ITL170-TB-AF |
|
Display size |
5：4 |
|
Active area |
337.920 (H)mm x 270.336 (V) mm |
|
Native resolution |
1280 x 1024@60Hz |
|
Pixel pitch |
0.264(mm) x 0.264(mm) |
|
Colors |
16.7 M |
|
Brightness(typical) |
LED panel: 250 nits |
|
Display: 215 nits |
|
|
Contrast ratio(typical) |
1000:1 |
|
Response time(typical) |
5.0 ms |
|
Viewing angle(typical) |
R/L:85/85 (typ) U/D:80/80 (typ) |
|
Input interface |
VGA、DVI、 HDMI、 USB TOUCH 、POWER |
|
OSD |
Contrast, Brightness, Horizontal vertical image size and position, Color temperature,The language selection, RESET, Exit OSD. |
|
Touch Specifications |
|
|
Touch screen |
17 " PCAP |
|
Touch point |
10 points |
|
Touch accuracy |
2mm |
|
Minimum touch body |
Ø7mm |
|
Touch activation force |
10g |
|
Touch response time |
10ms (typ) |
|
IC |
ILITeK |
|
Material |
2mm strengthen glass |
|
Surface durability |
Mohs' 7H |
|
Light transmission |
86% |
|
Touch resolution |
4096* 4096 |
|
Input method |
Finger、Touch pen |
|
Expected life performance |
50,000,000 times |
|
IK Class |
Ik8 |
|
Anti Fingerprint |
Yes |
|
Other Specifications |
|||
|
Bonding Method |
TAPE bonding |
||
|
Power supply |
DC: +12VDC ±5% (Adapter input:AC 100V-240V) |
||
|
IP(touch screen with frame) |
IP 65 |
||
|
MTBF |
50,000h |
||
|
Dimensions |
Product: 385.46mm*317.88mm*39.4mm |
||
|
Package: 453.0mm*430.0mm*157.0mm |
|||
|
Weight |
Product: 4.0kg |
||
|
Package: 5.0kg |
|||
|
Temperature |
Operating: 0o C ~ 40o C |
||
|
Storage: -20o C ~ 60o C |
|||
|
Humidity |
Operationg: 20%~80% |
||
|
Storage: 10%~90% |
|||
|
Accessories(standard) |
USB Cables |
Connector |
USBA-USBB |
|
Length |
3.0 m ± 30mm |
||
|
Color |
Gray white |
||
|
VGA Cord |
Type |
D-SUB 15Pin |
|
|
Length |
3.0 m ± 30mm |
||
|
Color |
Black |
||
|
Power Cord |
Type |
EU Standard |
|
|
Length |
3.0 m ± 30mm |
||
|
Color |
Black |
||
|
Adapter |
Type |
M120300P911(12V 3A) |
|
|
Color |
Black |
||
