15.6inch touch PC for industrial control
15.6'' Monitor Model: IDS156
When it comes to affordable, high-value touch solutions for OEM and system integration, TSD touch monitors are the top choice—and the 15.6-inch IDS156 monitor is a prime example. It’s widely used in retail, self-service, gaming, and entertainment scenarios, seamlessly fitting into diverse business setups.
TSD Technology, established in 2006, is a leading touch solution provider in Kunshan, China. We offer a comprehensive product lineup: PCAP and SAW touch screens, open-frame touch monitors, desktop touch monitors, and all-in-one touch computers. Our core focus is creating products that are reliable, long-lasting, and cost-competitive to meet customer needs.
As a trusted Chinese touchscreen provider, we have seasoned electronic engineers and industry experts dedicated to leading the touch screen industry into a new information technology era. We also hold key certifications like ISO9001, CE, FCC, and RoHS—proof of our unwavering commitment to quality, which the IDS156 monitor fully reflects.
Record Of Revisions
|
Version and Date |
Page |
Old Description |
New Description | Remark |
|
A0 2024/04/18 |
ALL |
First Edition For Customer |

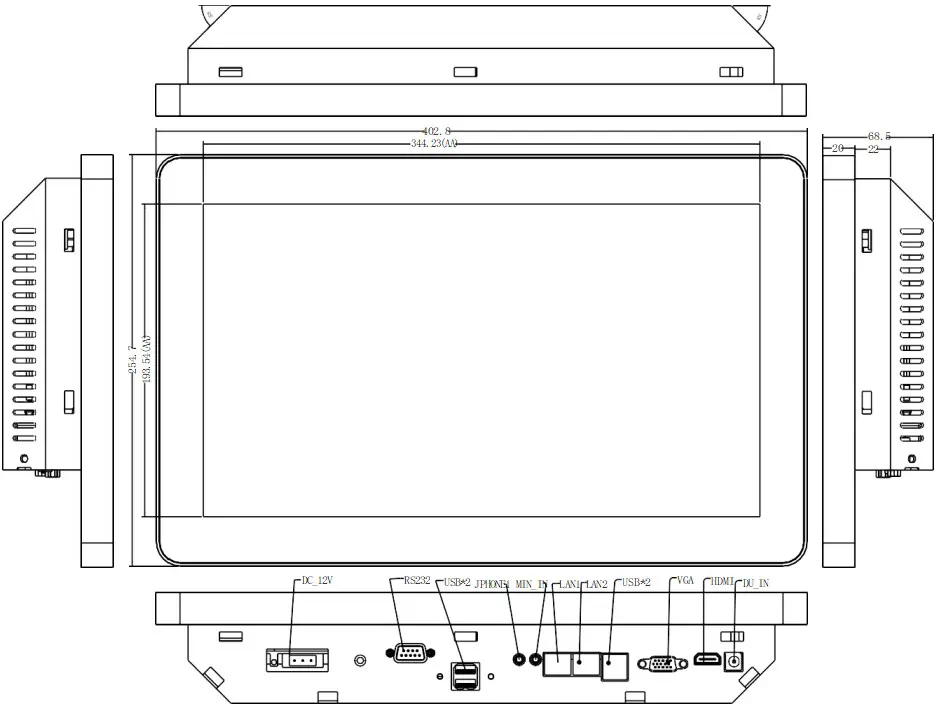

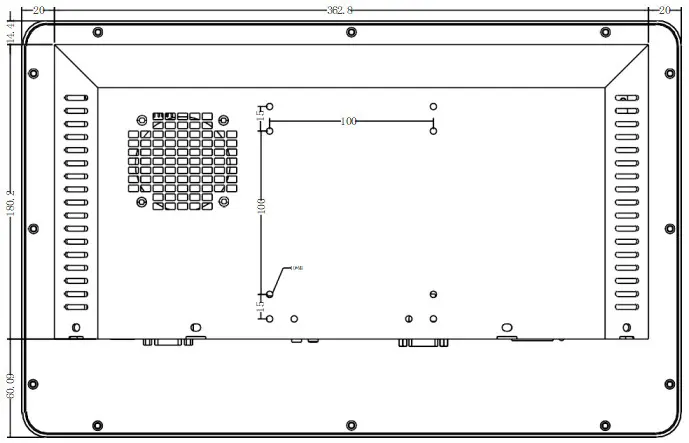

Product Drawing
Technical Parameters
|
Display specification |
|
|
Model |
LCD |
|
Display size |
16：9 |
|
Active area |
344.16 (H)mm x 193.59(V) mm |
|
Native resolution |
1920 x 1080 @60Hz |
|
Pixel pitch |
0.17925(mm) x 0.17925(mm) |
|
Display colors |
262K |
|
Brightness(typical) |
LED panel: 500 nits |
|
Contrast ratio(typical) |
800:1 |
|
Response Time |
30ms |
|
Viewing angle(typical) |
R/L:85/85 (typ) U/D:85/85 (typ) |
|
Touch Specifications |
|
|
Touch screen |
CTP156GBCXX-M-3（1 15.6 " PCAP） |
|
Touch point |
10 points |
|
Touch accuracy |
2mm |
|
Minimum touch body |
Ø7mm |
|
Touch activation force |
10g |
|
Touch response time |
10ms (typ) |
|
IC |
ILI2510 |
|
Material |
3 mm strengthen glass |
|
Surface durability |
Mohs' 7H |
|
Light transmission |
86% |
|
Touch resolution |
4096*4096 |
|
Input method |
Finger、Touch pen |
|
Expected life performance |
50,000,000 times |
|
PC Specifications |
|
|
CPU |
Intel®Celeron J6412 2.0GHz |
|
GPU |
Intel Hm76 |
|
ROM |
DDR4-16G |
|
SSD |
SATA3.0-256G |
|
Display |
Supports LVDS, VGA,HDMI，eDP |
|
USB |
8*USB（USB3.0*2 USB2.0*6） |
|
COM |
support RS232/RS485 |
|
VGA |
VGA*1 |
|
HDMI |
HDMI*1 |
|
OS |
Support Windows 10/Windows 11/Linux |
|
Internet |
DC-12V,RS232, USB*2,JPHONE1,MIN-IN,LAN1,LAN2，USB*2,VGA,HDMI,DU-IN |
|
Other Specifications |
|
|
Power supply |
DC:12V |
| Dimensions | Product: 402.8mm*254.7 mm*68.5mm |
| Package: 495.0mmx165.0mmx350.0mm | |
|
Weight |
Product: 4.0kg |
| Package: 5.0kg | |
| Temperature | Operating: 0o C ~ 50oC |
| Storage: -20o C ~ 60oC | |
|
Humidity |
Operating: 20%~80% |
| Storage: 10%~90% | |
