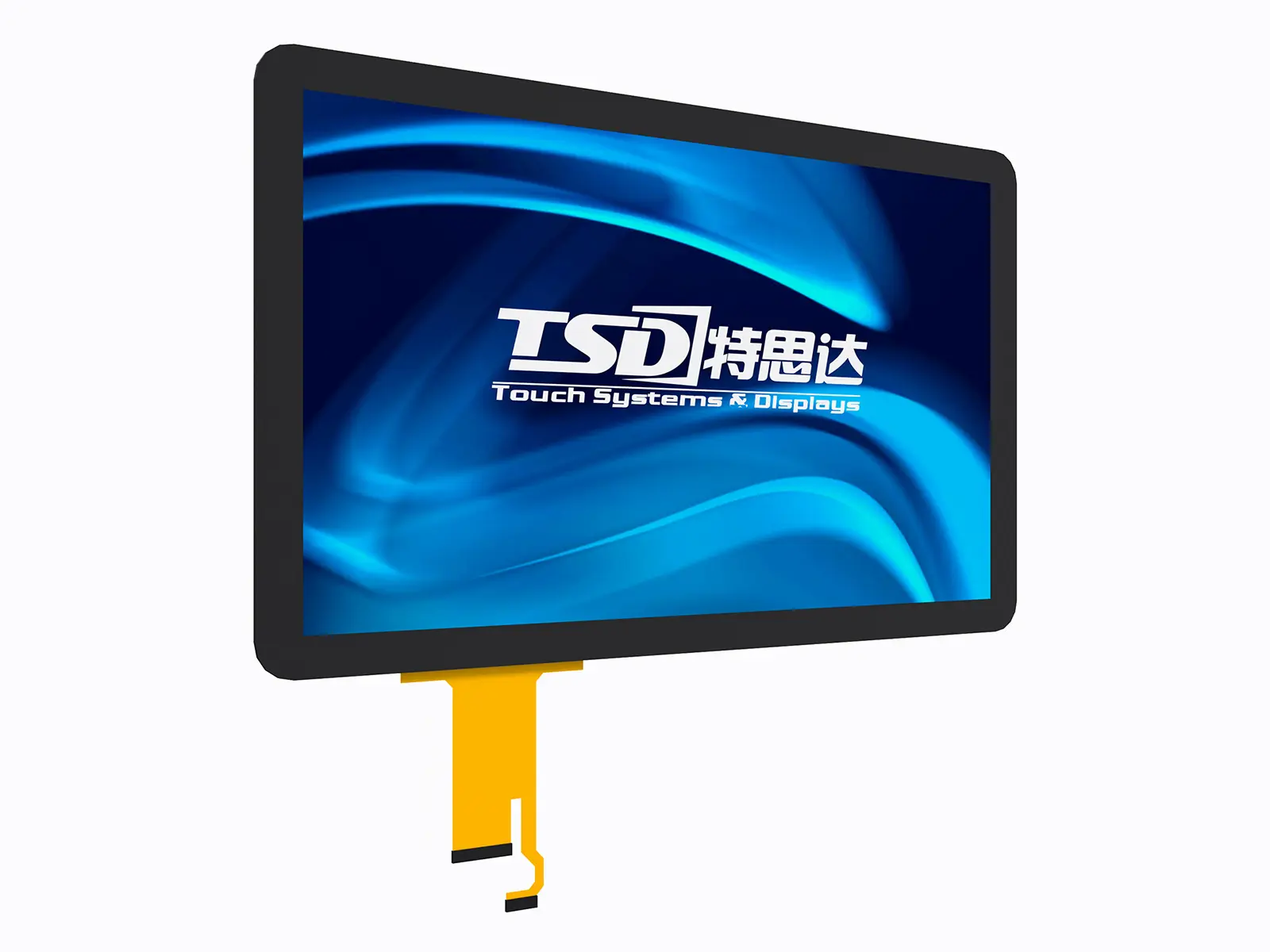

15.6-inch Full HD embedded Touch Display Module
15.6'' Touch Monitor
When it comes to affordable, high-value touch solutions for OEM and system integration, TSD touch monitors are the top choice—and the 15.6-inch touch monitor is a prime example. It’s widely used in retail checkouts, self-service kiosks, gaming setups, and entertainment systems, seamlessly fitting into diverse business needs.
TSD Technology, established in 2006, is a leading touch solution provider in Kunshan, China. We offer a comprehensive product lineup: PCAP and SAW touch screens, open-frame touch monitors, desktop touch monitors, and all-in-one touch computers. Our core focus is creating products that are reliable, long-lasting, and cost-competitive to meet customer demands.
As a trusted Chinese touchscreen provider, we have seasoned electronic engineers and industry experts dedicated to leading the touch screen industry into a new information technology era. We also hold key certifications like ISO9001, CE, FCC, and RoHS—proof of our unwavering commitment to quality, which the 15.6-inch touch monitor fully reflects.

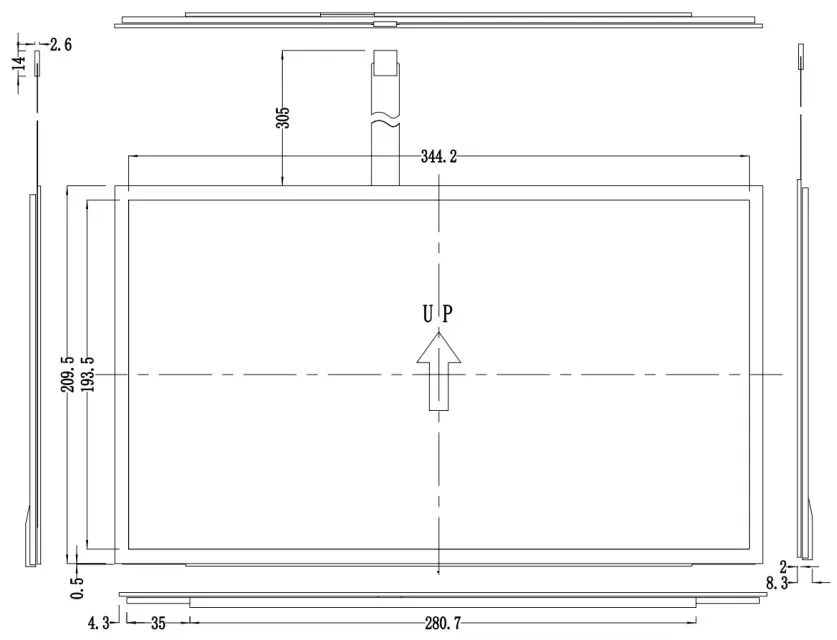

Product Drawing
Technical Parameters
|
Display specification |
|
|
Model |
TDM156 |
|
Display size |
16：9 |
|
Active area |
344.16 (H)mm x193.59 (V) mm |
|
Native resolution |
1920x1080@60Hz |
|
Pixel pitch |
0.17925(W)mm x 0.17925(H)mm |
|
Colors |
16.7M |
|
Brightness(typical) |
LED panel: 350 nits |
|
Display: 301 nits |
|
|
Contrast ratio(typical) |
1000:1 |
|
Response time(typical) |
30 ms |
|
Viewing angle(typical) |
R/L:80/80 (typ) U/D:80/80 (typ) |
|
Touch Specifications |
|
|
Touch screen |
15.6 " Resistive screen-5 wire |
|
Linearity(for Resistive type only) |
<6.0% |
|
Pen hitting durability |
>35,000,000times(with the R3.0 silicon rubber) |
|
Pen sliding durability |
>10,0000 times |
|
Surface Hardness |
>3H |
|
Light transmission |
78% |
|
Actuation force |
60-150g |
|
Input method |
Finger、Touch pen |
|
Other Specifications |
|
|
Dimensions |
Product: 344.2mm*209.5 mm*2.6mm |
|
Package: 495.0mmx350.0mmx165.0mm |
|
|
Weight |
Product: 3.2kg |
|
Package: 5.0kg |
|
|
Temperature |
Operating: 0o C ~ 40o C |
|
Storage: -20o C ~ 60o C |
|
|
Humidity |
Operating: 20%~80% |
|
Storage: 10%~90% |
|
