10-inch Touch Screen Displays and Computer Monitors

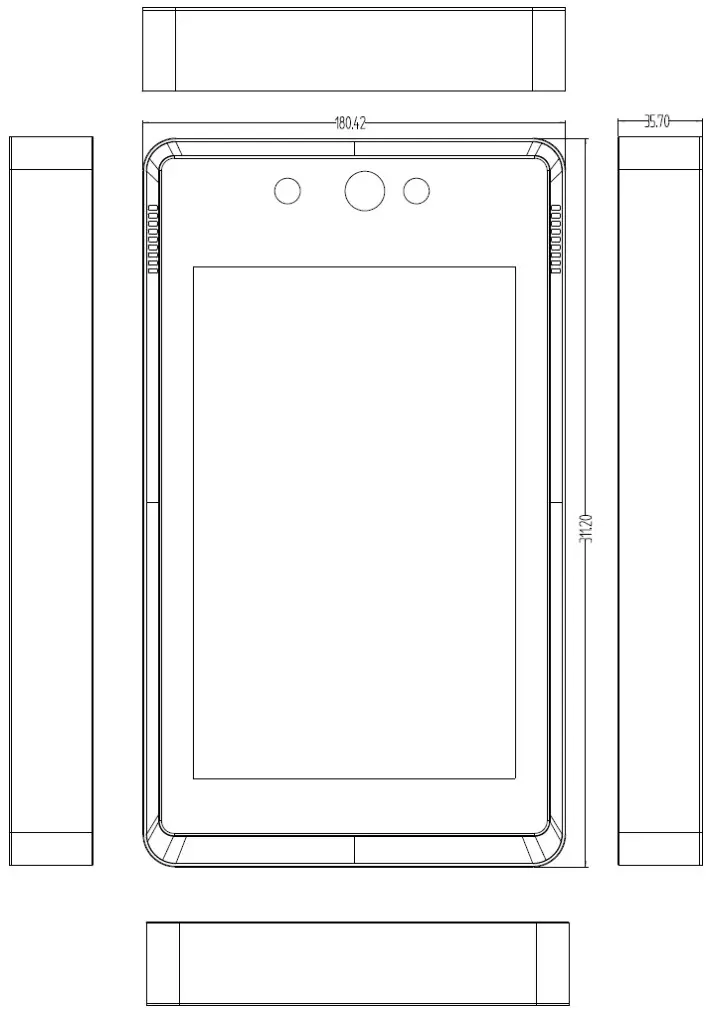

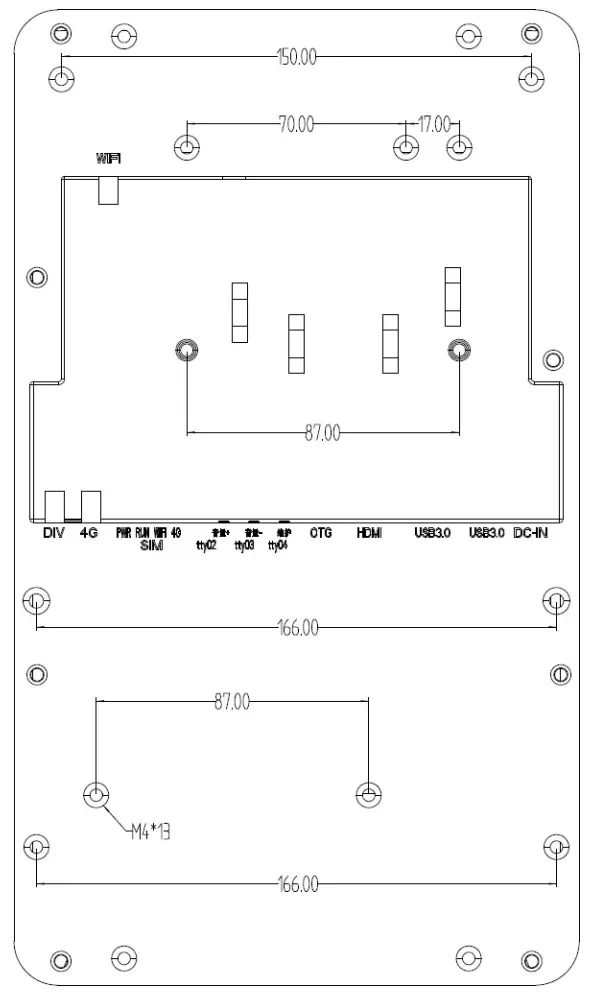

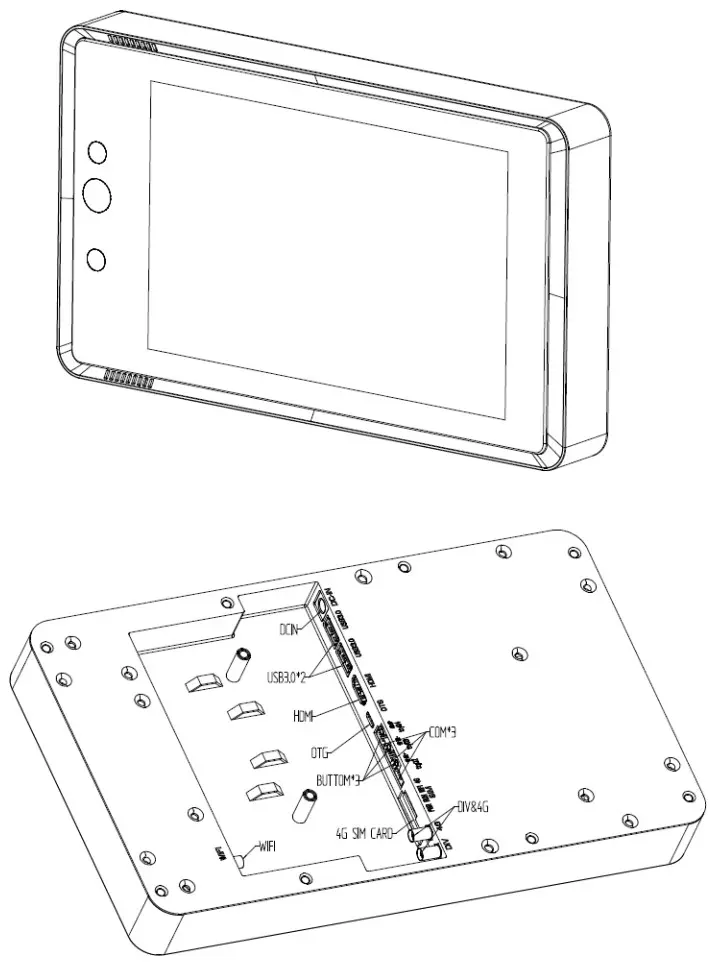

Product Drawing
Technical Parameters
|
Display specification |
|
|
Model |
IDS101 |
|
Display size |
16：10 |
|
LCD model |
M101GWWF R0 |
|
Display area |
216.96 (H)mm x 135.60 (V) mm |
|
Native resolution |
1280x800@60Hz |
|
Pixel pitch |
0.1695(mm) x 0.1695(mm) |
|
Colors |
16.7M |
|
Brightness |
LED panel: 350 nits |
|
整机: 301 nits |
|
|
Contrast |
800:1 |
|
Response time |
25 ms |
|
View angle |
R/L:85/85° (typ) U/D:85/85° (typ) |
|
OSD |
Contrast, Brightness, Horizontal vertical image size and position Color temperature,The language selection, RESET, Exit OSD |
|
Touch Specifications |
|
|
Touch screen |
CTP101GBCXX-23 （10.1'’PCAP） |
|
IC |
ILI2511&ILI2132 |
|
Touch points |
10点 |
|
Accuracy |
2 mm |
|
Minimum touch body |
7mm |
|
Touch activation force |
10g |
|
Touch response time |
10ms |
|
Touch chip |
ILITEK |
|
Material |
2mm strengthen glass |
|
Surface durability |
Mohs' 7H |
|
Light transmission |
86% |
|
Touch resolution |
4096x4096 |
|
Input method |
Finger、Touch pen |
|
Expected life performance |
50,000,000 times |
|
PC Specifications |
|
|
CPU |
RK3399 |
|
Memory |
2G/4G DDR3 |
|
SSD |
8G/16G/32G |
|
Other Specifications |
|
|
Power |
DC: 12V |
|
SDimensions |
product：311.2mmx180.42mmx35.7mm |
|
package：425.0mmx297.0mmx271.0mm |
|
|
Weight |
product：2.2Kg |
|
package：3.2Kg |
|
|
Temperature |
Operation：-10o C ~ 60o C |
|
Storage ：-20o C ~ 70o C |
|
|
Humidity |
Operation：20%~80% |
|
Storage：10%~90% |
|
